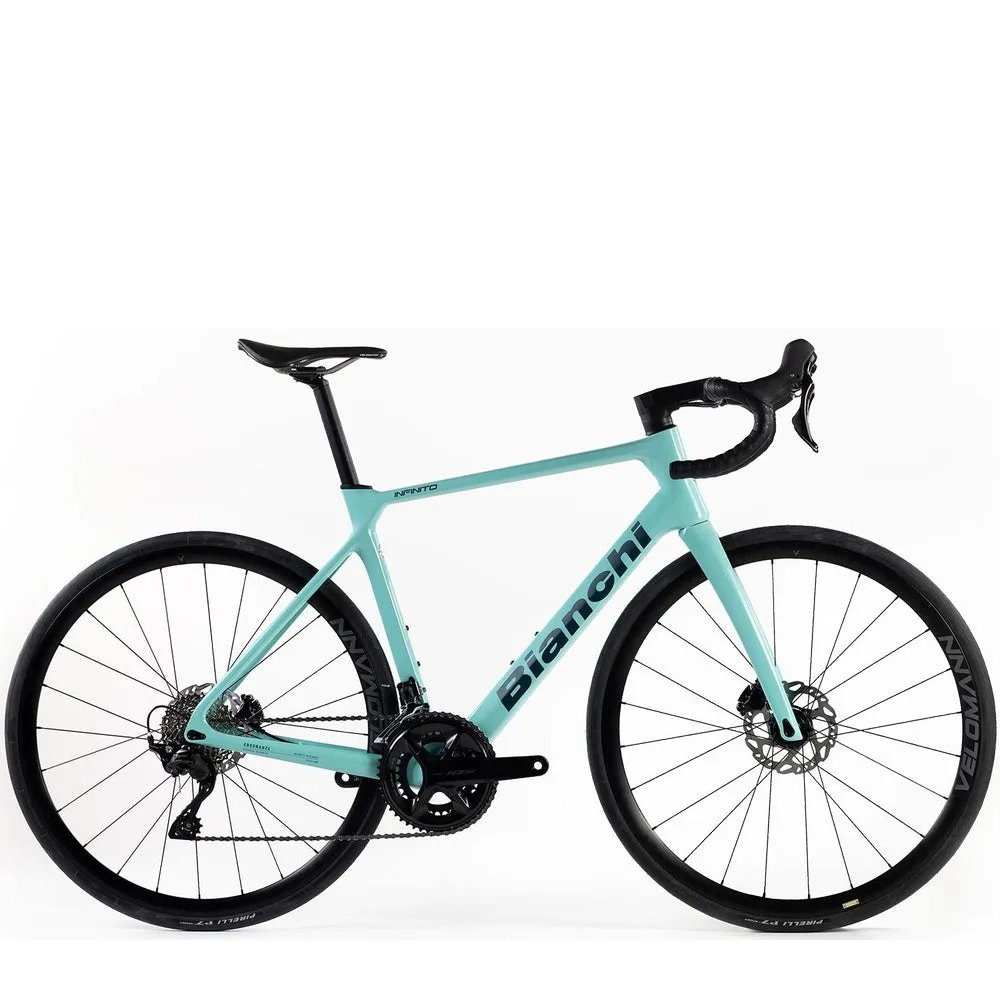

Bianchi Infinito ICR Ultegra Di2 Disc Road Bike - Celeste/Black
The Bianchi Infinito ICR Ultegra Di2 Disc Road Bike is engineered for performance and comfort, making it the ideal choice for endurance riders. Featuring a lightweight carbon frame and innovative Infinito geometry, this bike provides a perfect blend of stability and agility on long rides. The disc brake system enhances stopping power and control, even in challenging weather conditions.
Equipped with Shimano Ultegra Di2 electronic shifting, youll experience precise, lightning-fast gear changes with the press of a button, ensuring smooth transitions as you conquer various terrains. The internal cable routing not only enhances aerodynamics but also gives the bike a clean, sleek look.
With its accommodating design, the Bianchi Infinito ICR is ready for any adventure, whether you're tackling steep climbs or enjoying a leisurely ride. Elevate your cycling experience with this state-of-the-art road bike that combines cutting-edge technology with Bianchi's renowned craftsmanship.
Specification
| Frame | INFINITO carbon ICR - 1.5"- 1.5", Disc Brake, Mechanical/Electronic Di2, compatible with 32" tire, BBset pressfit 86,5x41, rear dropout 12 x 142mm thru axle |
| Headset | Acros/FSA for ICR cable routing |
| Fork | Full Carbon ICR - 28"- 300mm - 1.5", dropout 12 x 100mm thru axle |
| Shifter | Ultegra Di2 hydraulic disc brake for road ST-R8170(L), ST-R8170 (R) |
| Rear Derailleur | Ultegra Di2 12sp RD-R8150, 12-speed, max 34T |
| Front Derailleur | Ultegra Di2 12sp FD-R8150, Ultegra Di2, brazed-on type |
| Crankset | Ultegra 12sp FC-R8100, hollowtech 2, for rear 12- speed, 170- 172,5-175mm, 50x34T Crank Length:170mm-47~54cm, 172.5mm-55~59cm, 175mm-61cm |
| Bottom Bracket | Shimano KSMBB7241B pressfit |
| Chain | Shimano CN-M8100, 12- speed |
| Cassette/Freewheel | Ultegra 12sp 11-34T CS-R8100, Ultegra 12sp, 11-12-13-14-15-17-19-21-24- 27-30-34T |
| Brake | Shimano BR-R8170 Hydraulic disc brake included in the shifter |
| Disc Rotor | Shimano RT-CL800, 160mm front rear |
| Rim/Wheelset | Velomann Palladium, 33mm profile, 700x21c, 24h, HG11 body, spoke pattern 2 to 1, tubeless-ready, set 1450 gr, sealed cartridge bearings |
| Tyre | Pirelli Cinturato Velo TLR 32mm (622-32), ArmourTech |
| Stem | Velomann, AL6061, fully internal cable routing stem, compatible with Acros AICR system Ext: 90mm (47), 100mm(50/53), 110mm(55/57), 120mm(59/61) |
| Handlebar | Velomann Aero Compact handlebar full ICR, alloy diam. 31.8mm, reach 74mm, drop 116mm Size: 400mm-47~53cm, 420mm-55~57cm, 440-59"61cm |
| Grip/Tape | Bianchi Arrow premium tape, 2.5mm thickness, full black |
| Seatpost | Velomann, custom D-shape, alloy shaft 2014, head alloy 6061, Setback 25mm L350mm =47>57cm; L380mm= 59>61cm |
| Saddle | Velomann Mitora Lite 139 saddle, 139x250mm carbon rail 7x9.1mm |
Geometry
| SIZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 470 XXS | 420 | 515 | 415 | 68 | 120 | 580 | 74.5 | 70.5 | 43 | 375 | 371 | 521 | 986 |
| 500 XS | 450 | 525 | 415 | 68 | 135 | 583 | 74.5 | 71.5 | 43 | 375 | 375 | 539 | 988 |
| 530 S | 480 | 535 | 415 | 68 | 150 | 588 | 74 | 71 | 43 | 375 | 377 | 553 | 993 |
| 550 M | 500 | 550 | 415 | 68 | 165 | 593 | 73.5 | 72 | 43 | 375 | 381 | 569 | 999 |
| 570 L | 520 | 560 | 415 | 68 | 165 | 593 | 73.5 | 72.5 | 43 | 375 | 386 | 585 | 1004 |
| 590 XL | 540 | 575 | 420 | 68 | 195 | 608 | 73 | 72.5 | 43 | 375 | 391 | 600 | 1019 |
| 610 XXL | 560 | 585 | 420 | 68 | 210 | 612 | 72.5 | 72.5 | 43 | 375 | 392 | 614 | 1023 |
