Status 2 170 DH 2024

Status 2 170 DH 2024

$ 55.00

$ 269.92

Unavailable
Status 2 170 DH 2024

Status 2 170 DH 2024

$ 55.00

$ 269.92

Size:
  • S3
  • S4
  • S5
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.

Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.

BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. Its not for the gram counterits for those riders who push the boundaries of progression and come back for more.

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics teama group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

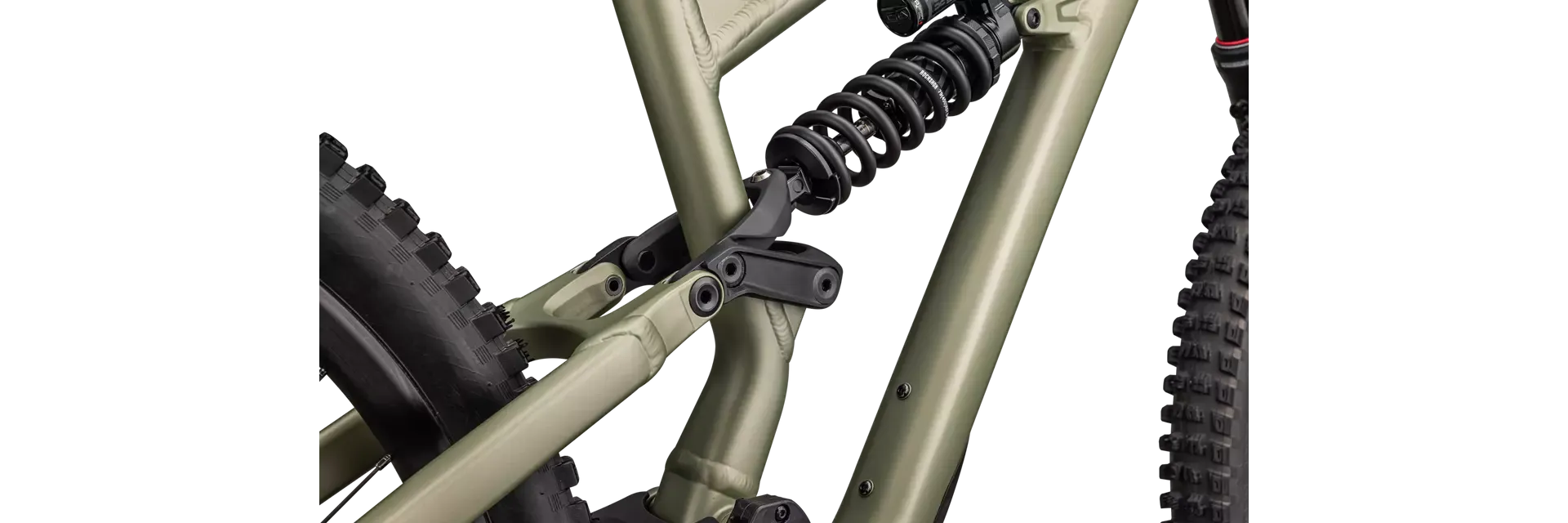

LETS GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frames geometry to their desired ride or terrain. Bikes ship in the high position but can be flipped to lower and slacker8 mm lower bottom bracket and half a degree slacker head tube angle.

  • 100% Redesigned durable alloy chassis
  • New, more durable alloy rims
  • Horst Link geometry adjust flip chip
  • Updated geometry for more usability
  • Curated parts spec for your desired ride experience
Specification
Frameset
Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Seat Binder
Alloy, 38.6mm
Suspension
Fork
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel
Rear Shock
RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm
Brakes
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm
Drivetrain
Bottom Bracket
SRAM DUB Threaded Wide
Crankset
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
Cassette
SRAM GX DH, 7-speed, 11-24t
Rear Derailleur
SRAM GX DH, 7-speed, trigger
Shift Levers
SRAM GX DH, trigger, 7-speed
Chain
SRAM PC1110 w/ Powerlink
Wheels & tires
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Hub
Alloy, sealed cartridge bearings, 20x110mm, 28h
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 27.5x2.3"
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"
Spokes
DT Swiss Industry
Rims
Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29", 28H, Rear: 27.5", 32H
Inner Tubes
Standard, Presta valve
Cockpit
Saddle
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
Grips
Deity Lockjaw
Stem
Descendant 35mm Direct Mount Stem, 50mm length
SeatPost
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm
Product details
Product ID
221356
Weight
Weight
17.18kg (37 lb, 14 oz)
Weight Size
S3
Geometry

S2S3S4S5
Crank Length165165165165
Handlebar Width780800800800
Stem Length50505050
Saddle Width130130130130
Seatpost Length375375375375
Stack (low)625634643652
Stack (high)620629638647
Reach (low)445470495520
Reach (high)451476501526
Headtube Length100110120130
Headtube Angle (low)63.563.563.563.5
Headtube Angle (high)64646464
BB Height (low)342342342342
BB Height (high)350350350350
BB Drop (low)34343434
BB Drop (high)26262626
Trail (low)138138138138
Trail (high)133133133133
Fork Length (full)581581581581
Fork Rake/Offset44444444
Front Center789819848878
Chainstay Length (low)432432437437
Chainstay Length (high)436436441441
Wheelbase1221125012851314
Top-tube Length (horizontal)595635676716
Bike Standover Height735742748752
Seat Tube Length440465400420
Seat Tube Angle (low)77777777
Seat Tube Angle (high)77.677.677.677.6
