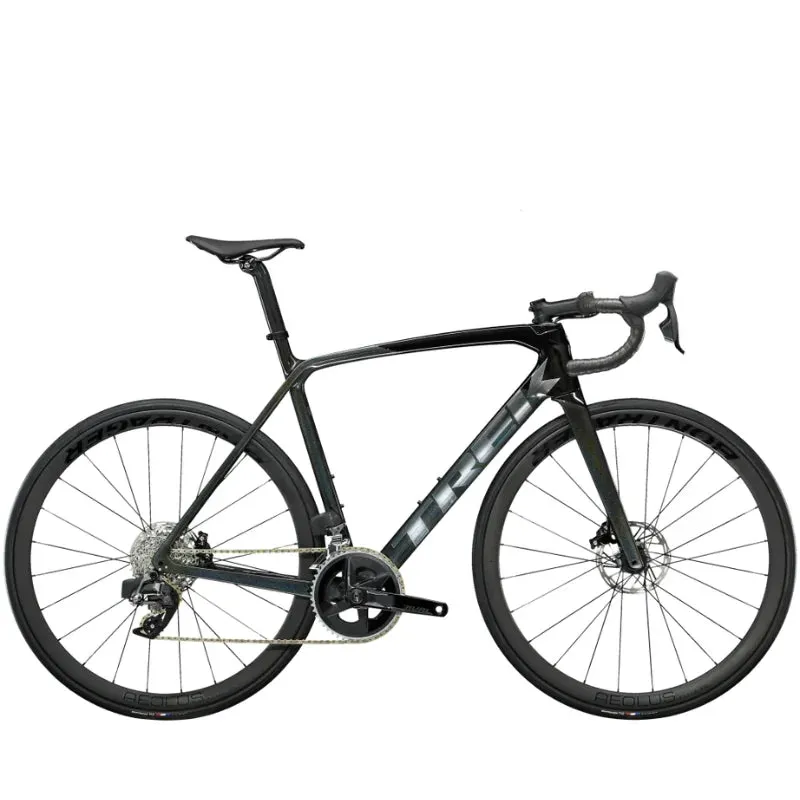

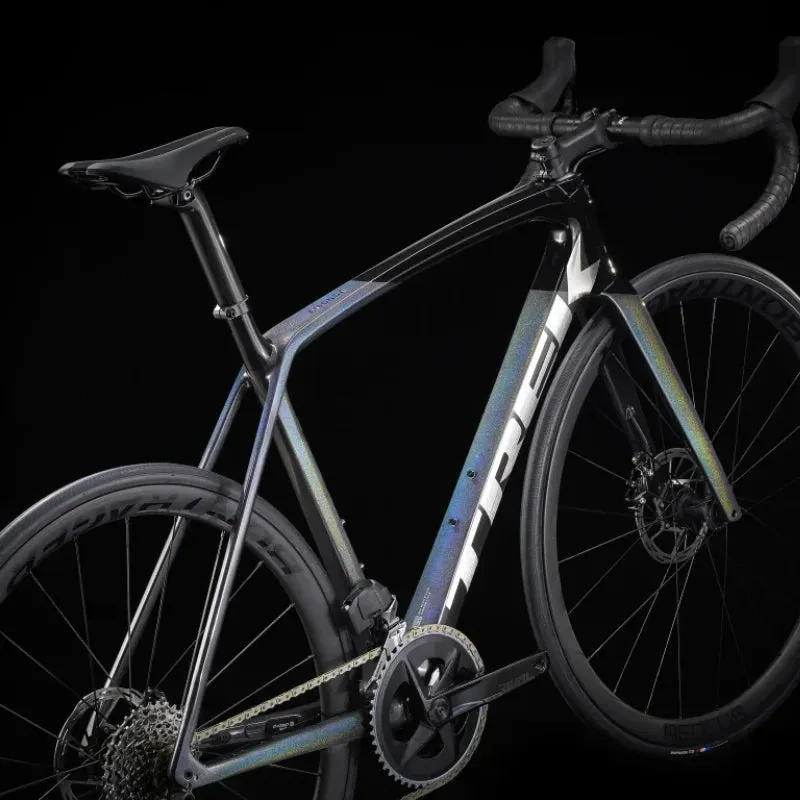

Experience Speed and Precision with the Trek monda SL 6 eTap in Dark Prismatic/Trek Black
The Trek monda SL 6 eTap combines ultra-lightweight carbon construction with aerodynamic tube shaping to create the ultimate road bike for riders who crave speed and precision. With its SRAM Rival eTap AXS wireless drivetrain and included power meter, this bike delivers top-notch performance without breaking the bank.
Designed for Speed: The aerodynamic tube shaping of the monda SL 6 eTap ensures maximum efficiency on both flat stretches and challenging climbs. Its lightweight carbon frame and fork provide exceptional handling, allowing you to push your limits on any terrain.

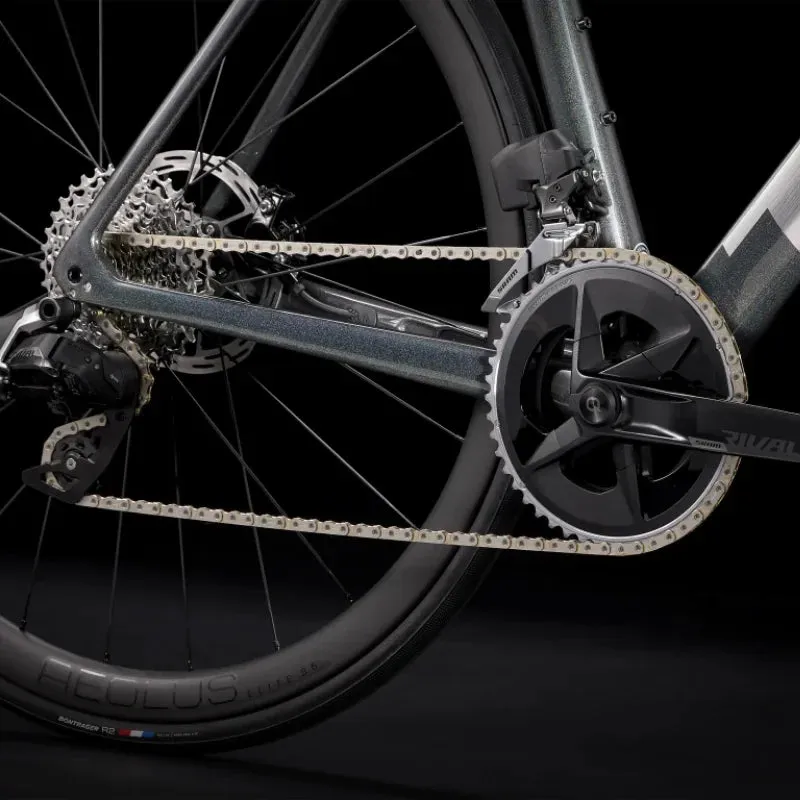

Wireless Precision: Equipped with the SRAM Rival eTap AXS 2x12 wireless electronic drivetrain, this bike offers lightning-fast shifts and customizable shift logic via the AXS app. The 12-speed cassette allows for precise cadence control, giving you an edge in your training and racing endeavors.
Race-Ready Performance: For riders who demand the best, the monda SL 6 eTap delivers. Whether you're tackling steep climbs, fast descents, or sprinting for the finish line, this bike is fully capable of handling whatever the road throws your way.
Why Choose the Trek monda SL 6 eTap:
- Aero Advantage: Experience the fastest monda SL platform ever, thanks to its aerodynamic tube shaping that enhances speed on both flats and climbs.
- Wireless Convenience: Enjoy the precision and customization of the SRAM Rival eTap AXS wireless drivetrain, offering lightning-fast shifts and easy customization via the AXS app.
- Performance Enhancements: Benefit from the 12-speed cassette and include Rival AXS power meter, providing more effective training rides and improved performance metrics from the get-go.
- Exceptional Handling: With its lightweight carbon construction and advanced design, this bike offers exceptional handling characteristics, ensuring confidence-inspiring performance on any road.
Conclusion: Elevate your road riding experience with the Trek monda SL 6 eTap in Dark Prismatic/Trek Black. With its winning combination of lightweight construction, aerodynamic design, and precision components, this bike is your ticket to faster, more exhilarating rides. Dominate the road with the monda SL 6 eTap!
Specifications
Trek Emonda SL 6 eTap Specification
FRAMESET

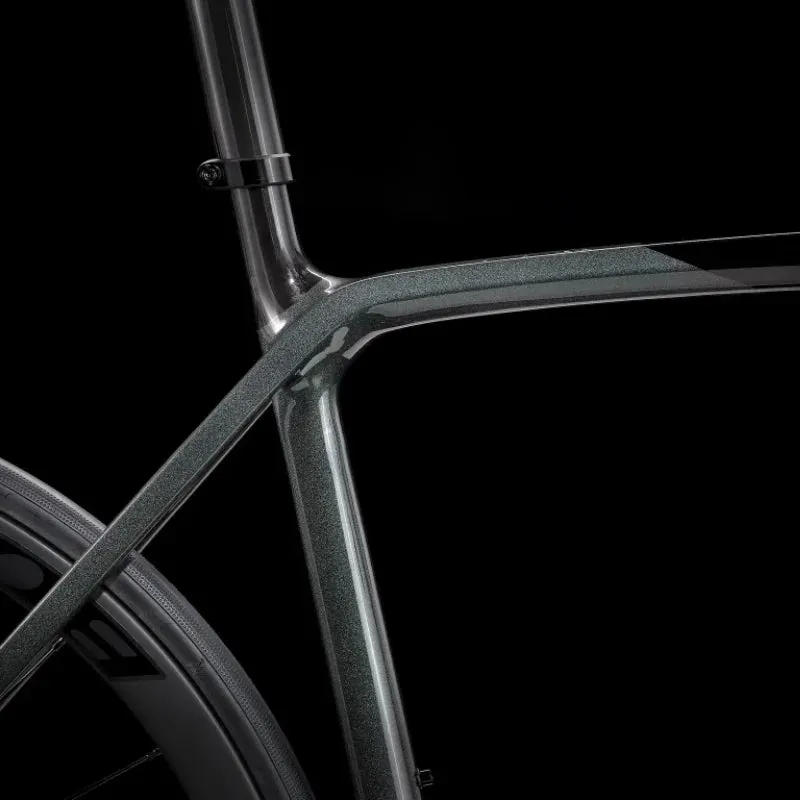

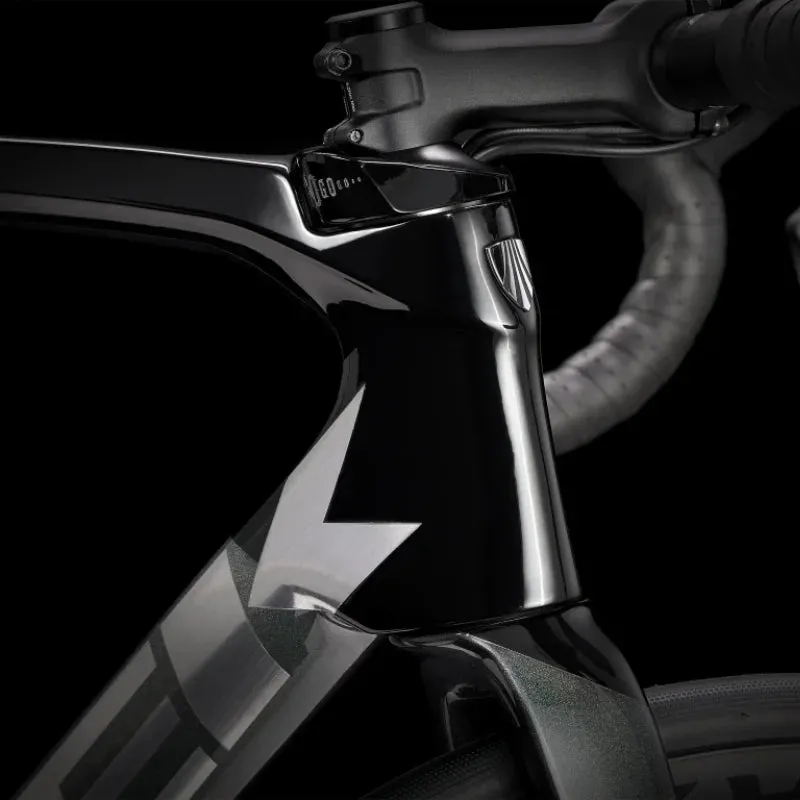

| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru-axle |
| Fork | monda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle. |
| Frame Fit | H1.5 Race |
WEIGHT
| Weight | 56 - 19.16 lb/8.69 kg |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 125 kg (275 lb). |
E-SYSTEM
| Battery | SRAM eTap battery pack (with charger) |
DRIVETRAIN
| Shifter | SRAM Rival eTap AXS, 12-speed |
| Front Derailleur | SRAM Rival D1 AXS, braze-on |
| Crank | Size: 50, 52 Size: 56, 58 Size: 60, 62 |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1250, 10-36, 12-speed |
| Chain | SRAM Rival, 12-speed |
| Max. chainring size | 1x: 50T; 2x" 53/39 |
WHEELS
| Wheel Front | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru-axle |
| Wheel Rear | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, SRAM XD-R drive, 142x12 mm thru-axle |
| Skewer Front | Bontrager Switch thru-axle, removable lever |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25 mm |
| Max Tyre Size | 28mm |
COMPONENTS
| Saddle | Bontrager Aeolus Comp, steel rails, 145 mm width |
| Seatpost | Size: 50, 52 Size: 56, 58, 60, 62 |

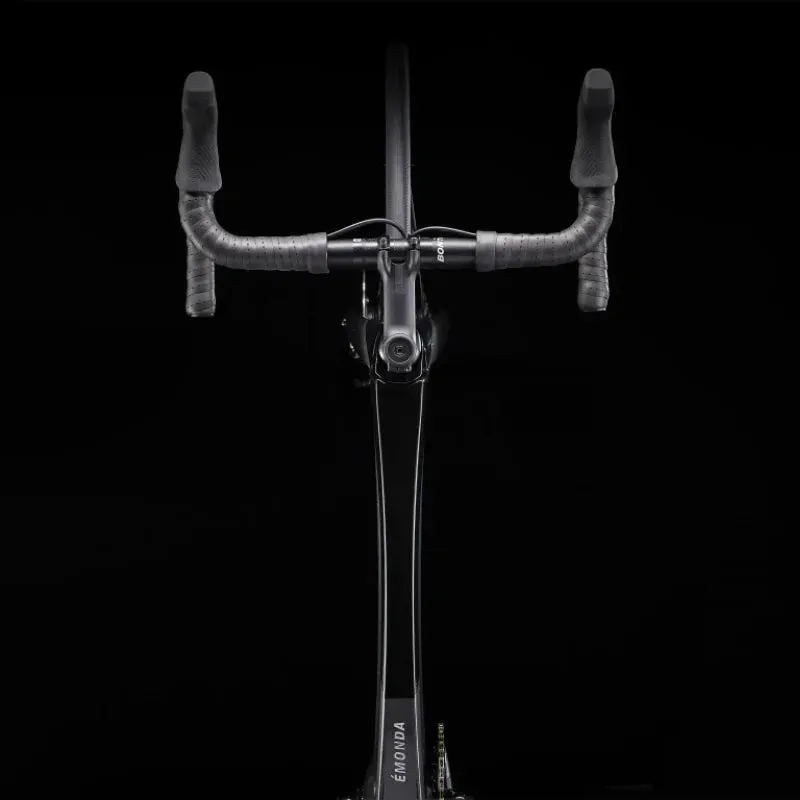

| Handlebar | Size: 50 Size: 52 Size: 56, 58 Size: 60, 62 |
| Handlebar Tape | Bontrager Supertack Perf Tape |

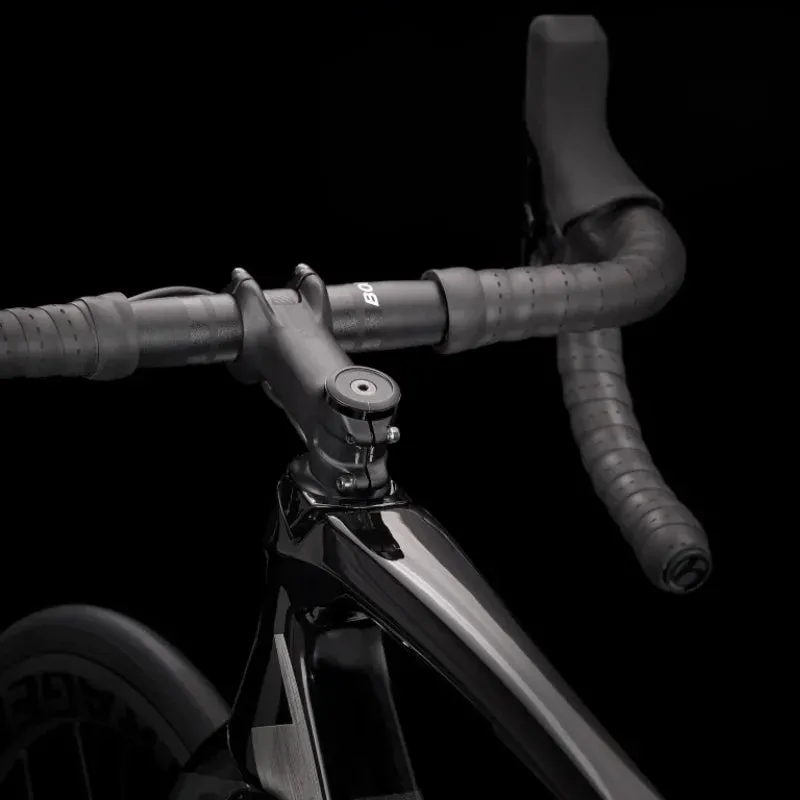

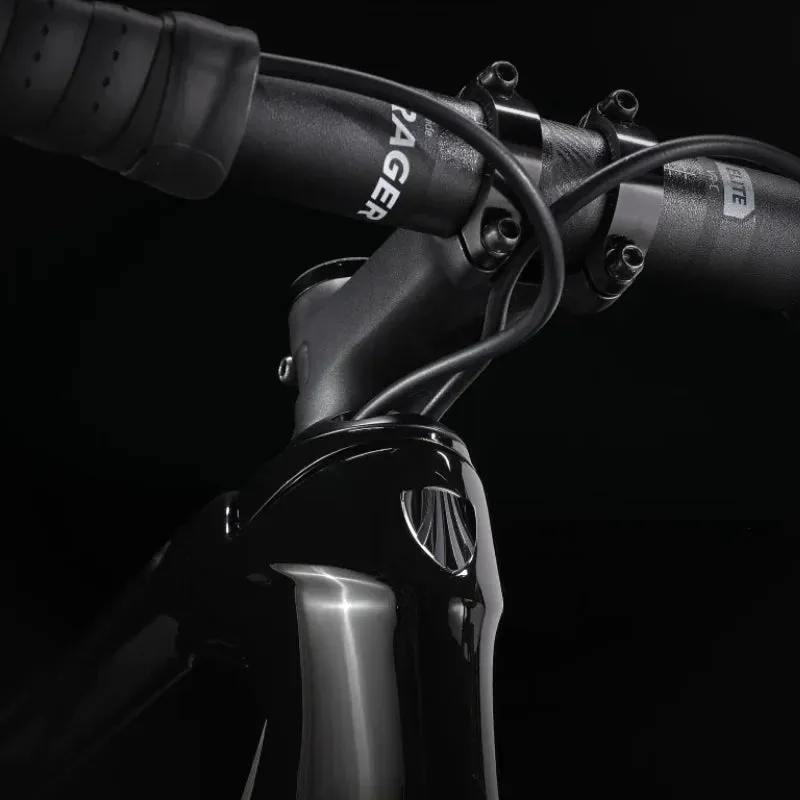

| Stem | Size: 50 Size: 52 Size: 56 Size: 58, 60, 62 |

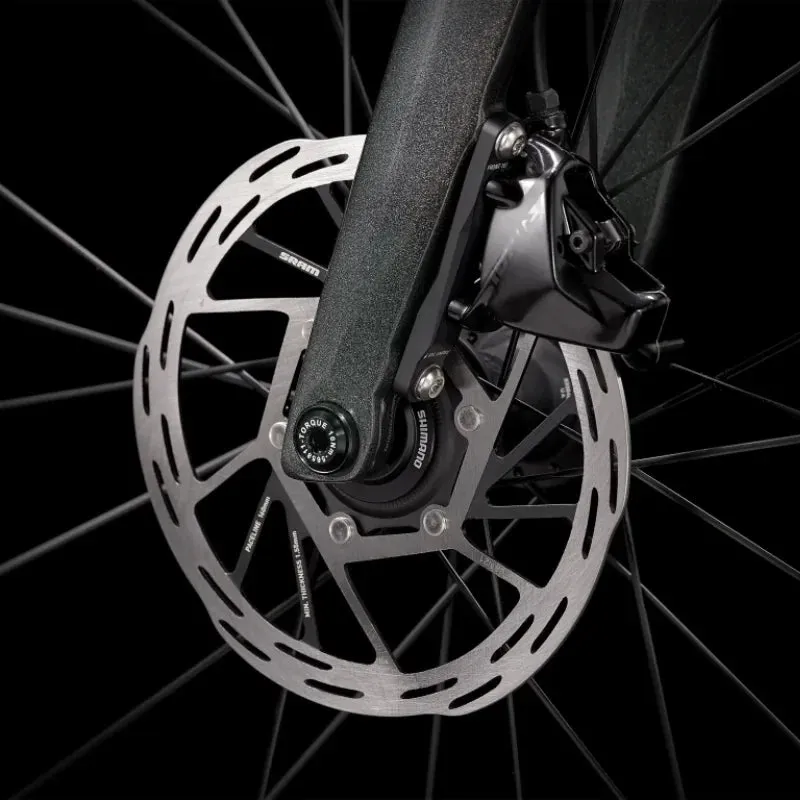

| Brake | SRAM Rival hydraulic disc |
| Brake Rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Rotor Size | Max Brake rotor sizes: 160 mm front & rear |
Sizing
Trek Emonda SL 6 eTap (AXL) Sizing
| Size | Rider Height | Inseam |
| 47 | 152 - 158 cm (5'0" - 5'2") | 71 - 75 cm (28" - 30") |
| 50 | 158 - 163 cm (5'2" - 5'4") | 74 - 77 cm (29" - 30") |
| 52 | 163 - 168 cm (5'4" - 5'6") | 76 - 79 cm (30" - 31") |
| 54 | 168 - 174 cm (5'6" - 5'9") | 78 - 82 cm (31" - 32") |
| 56 | 174 - 180 cm (5'9" - 5'11") | 81 - 85 cm (32" - 33") |
| 58 | 180 - 185 cm (5'11" - 6'1") | 81 - 85 cm (32" - 33") |
| 60 | 185 - 190 cm (6'1" - 6'3") | 86 - 90 cm (34" - 35") |
| 62 | 190 - 195 cm (6'3" - 6'5") | 89 - 92 cm (35" - 36") |
Geometry
Trek Emonda SL 6 eTap Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame size number | 56cm | 58cm | 60cm |
| Wheel Size | 700c | 700c | 700c |
| A - Seat Tube | 52.5 | 55.3 | 57.3 |
| B - Seat Tube Angle | 73.3 | 73.0 | 72.8 |
| C - Head Tube Length | 15.1 | 17.1 | 19.1 |
| D - Head Angle | 73.5 | 73.8 | 73.9 |
| E - Effective Top Tube | 55.9 | 57.4 | 58.6 |
| G - Bottom Bracket Drop | 7.0 | 6.8 | 6.8 |
| H - Chainstay Length | 41.0 | 41.1 | 41.1 |
| I - Offset | 4.0 | 4.0 | 4.0 |
| J - Trail | 5.8 | 5.7 | 5.6 |
| K - Wheelbase | 98.3 | 99.2 | 100.1 |
| L - Standover | 76.8 | 79.3 | 81.1 |
| M - Frame Reach | 39.1 | 39.6 | 39.9 |
| N - Frame Stack | 56.3 | 58.1 | 60.1 |
| Saddle rail height min (w/short mast) | 67.0 | 69.0 | 71.0 |
| Saddle rail height max (w/short mast) | 73.0 | 75.0 | 77.0 |
| Saddle rail height min (w/tall mast) | 70.5 | 72.5 | 74.5 |
| Saddle rail height max (w/tall mast) | 76.5 | 78.5 | 80.5 |
