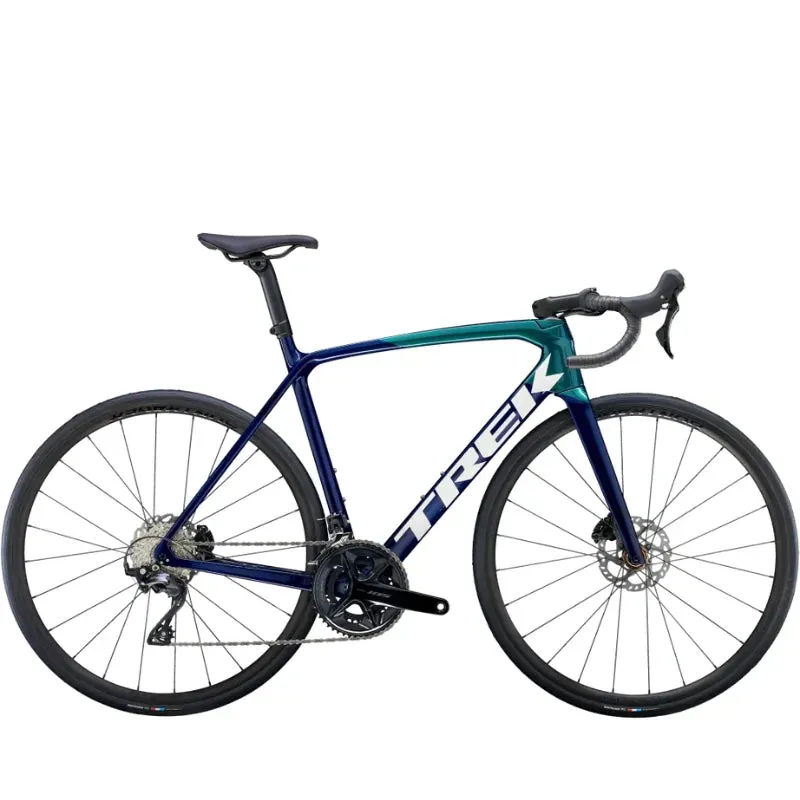

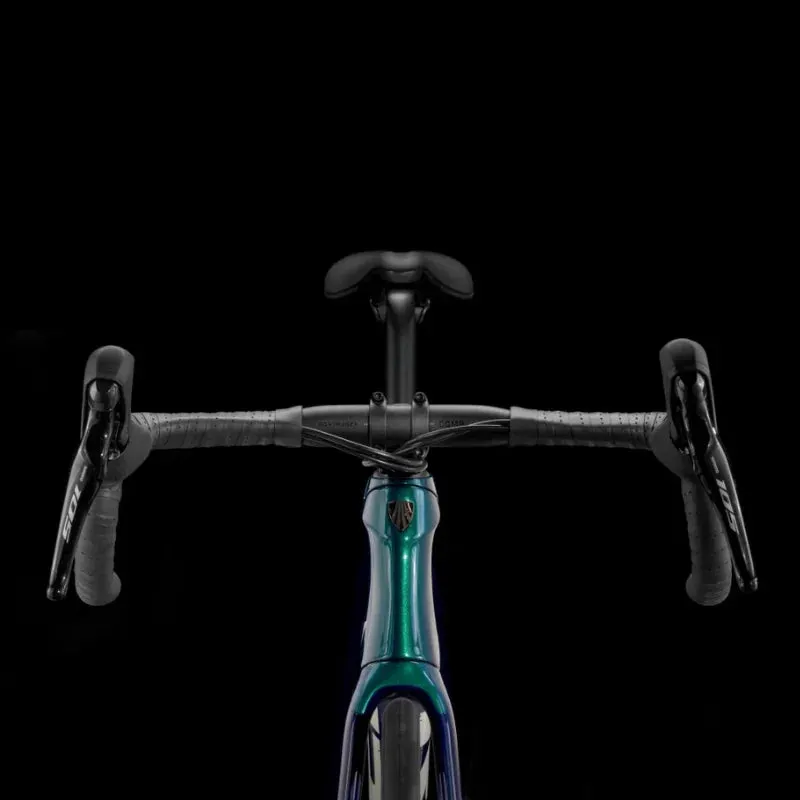

Trek monda SL 5 - Navy Smoke/Dark Aquatic: A Symphony of Speed and Design
Introducing the Trek monda SL 5 Disc, a marvel of engineering that combines the lightweight agility of carbon with the aerodynamic efficiency for a road bike that excels across hilly terrain, windy stretches, and rapid descents. This machine is tailored for century riders and competitive spirits alike, offering a balanced ride, unparalleled handling, and the swift precision of a Shimano 105 drivetrain.
Ideal for: If you're pursuing the pinnacle of performance on a light, swift carbon bike without breaking the bank, the monda SL 5 is for you. Perfect for newcomers to racing or dedicated road enthusiasts ready to transition from aluminum, this bike brings dependable components, robust stopping capabilities, and the unmatched ride quality of an aerodynamic OCLV Carbon frame.
Technology Highlights:

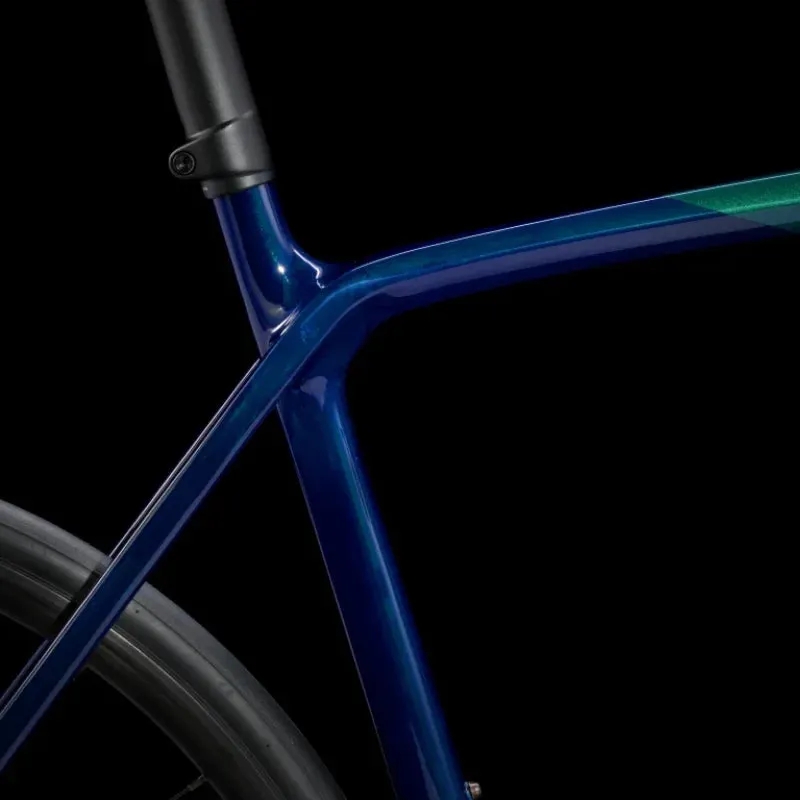

- Boasts a lightweight 500 Series OCLV Carbon frame and fork, both engineered for aerodynamics and speed.
- A comprehensive Shimano 105 12-speed drivetrain offers a wide range of gearing options for various terrains.

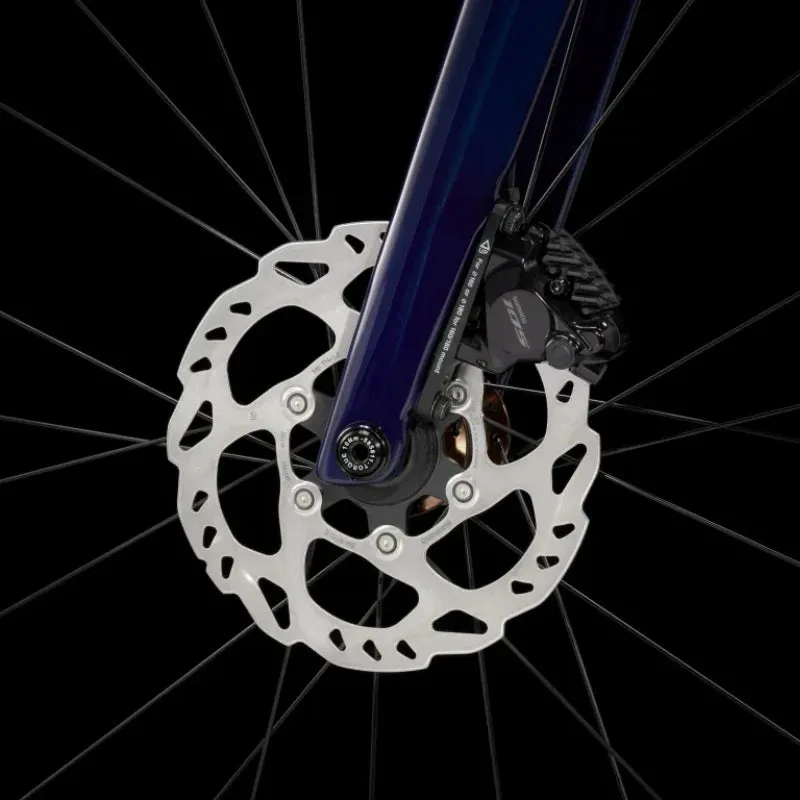

- Powerful flat-mount Shimano hydraulic disc brakes ensure reliable stopping power in all conditions.

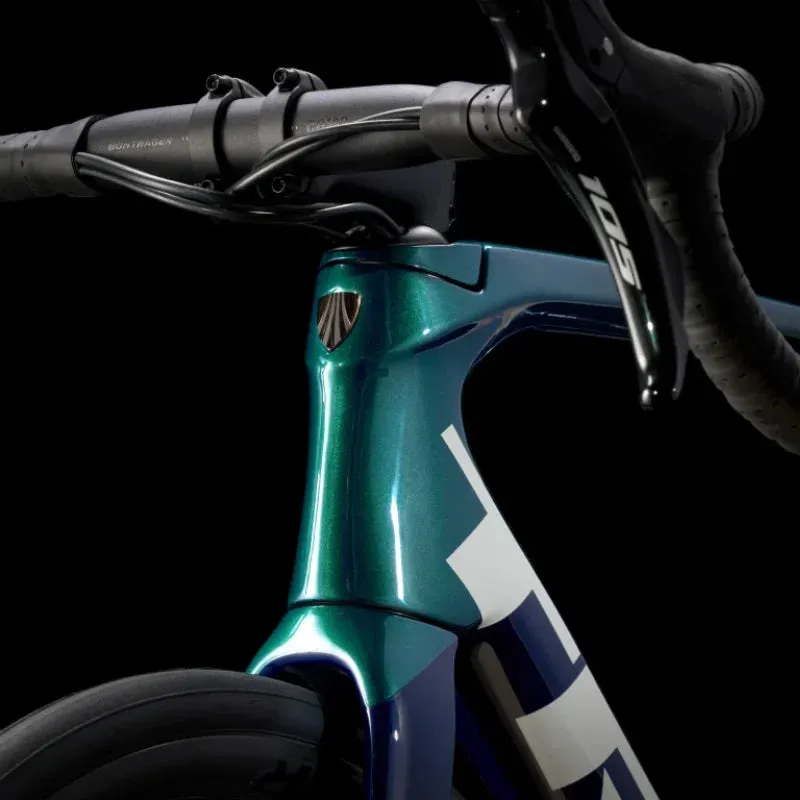

- Clean aesthetics are maintained with internal cable routing, complemented by Bontrager Paradigm SL Tubeless Ready wheels for reduced rolling resistance and enhanced performance.
The Ultimate Choice Because: The monda SL 5 stands out as a beacon of efficiency and velocity, climbing adeptly and dashing through straightaways. With an upgrade to hydraulic disc brakes and a steadfast drivetrain, it presents itself as an impeccable selection for your first carbon road bike.
Standout Features:
- Tremendous value: The monda SL 5 Disc delivers exceptional performance, equipped with a high-quality Shimano 105 drivetrain, all within a light and fast package.
- Aerodynamically optimized tube shaping ensures the monda rolls quickly across flat terrains and ascends with ease.
- An ideal upgrade for aluminium road bike riders, offering a significant leap in performance and ride quality.
- The inclusion of hydraulic disc brakes guarantees superior stopping power and confidence across any weather and road condition.
- Embodying the essence of Trek's monda line, this model is not only speedy and light but also comes with the assurance of our lifetime warranty.
Embrace the Trek monda SL 5 - Navy Smoke/Dark Aquatic for a ride that harmoniously blends speed, design, and value, setting a new standard for carbon road cycling with every pedal stroke.
SPECIFICATIONS
Trek monda SL 5 Specifications
FRAMESET
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
| Fork | monda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle |
WEIGHT
| Weight | 56 - 9.05 kg / 19.96 lbs (with tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
DRIVETRAIN
| Shifter | Shimano 105 R7120, 12-speed |
| Front Derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear Derailleur | Shimano 105 R7100, 36T max cog |
| Crank | Size: 47 Size: 50, 52 Size: 54, 56, 58 Size: 60, 62 |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 50T, 2x: 53/39 |
WHEELS
| Hub Front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru-axle |
| Skewer Front | Bontrager Switch thru-axle, removable lever |
| Hub Rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru-axle |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpis, 700x28 mm |
| Max tyre size | 28 mm |
COMPONENTS
| Saddle | Size: 47, 50, 52 Size: 54, 56, 58, 60, 62 |
| Seatpost | Size: 47, 50, 52, 54 Size: 56, 58, 60, 62 |
| Handlebar | Size: 47, 50 Size: 52 Size: 54, 56, 58 Size: 60, 62 |
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem | Size: 47 Size: 50 Size: 52, 54 Size: 56 Size: 58, 60, 62 |
| Brake | Shimano 105 hydraulic disc |
| Brake Rotor | Shimano RT70, center lock, 160mm |
| Rotor Size | Max brake rotor sizes: 160 mm front and rear |
SIZING
Trek monda SL 5 Sizing
| Size | Rider Height | Inseam |
| 47 | 152 - 158 (5'0" - 5'2") | 71 - 75 cm (28" - 30") |
| 50 | 158 - 163 cm (5'2" - 5'4") | 74 - 77 cm (29" - 30") |
| 52 | 163 - 168 cm (5'4" - 5'6") | 76 - 79 cm (30" - 31") |
| 54 | 168 - 174 cm (5'6" - 5'9") | 78 - 82 cm (31" - 32") |
| 56 | 174 - 180 cm (5'9" - 5'11") | 81 - 85 cm (32" - 33") |
| 58 | 180 - 185 cm (5'11" - 6'1") | 84 - 87 cm (33" - 34") |
| 60 | 185 - 190 cm (6'1" - 6'3") | 86 - 90 cm (34" - 35") |
| 62 | 190 - 195 cm (6'3" - 6'5") | 89 - 92 cm (35" - 36") |
GEOMETRY
Trek monda SL 6 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Number | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat Tube | 42.4 | 45.3 | 48.3 | 49.6 | 52.5 | 55.3 | 57.3 | 59.3 |
| Seat Tube Angle | 74.6 | 74.6 | 74.2 | 73.7 | 73.3 | 73.8 | 72.8 | 72.5 |
| Head Tube Length | 10.0 | 11.1 | 12.1 | 13.1 | 15.1 | 17.1 | 19.1 | 21.1 |
| Head Angle | 72.1 | 72.1 | 72.8 | 73.0 | 73.5 | 73.8 | 73.9 | 73.9 |
| Effective Top Tube | 51.2 | 52.1 | 53.4 | 54.3 | 55.9 | 57.4 | 58.6 | 59.8 |
| Bottom Bracket Drop | 7.2 | 7.2 | 7.2 | 7.0 | 7.0 | 6.8 | 6.8 | 6.8 |
| Chainstay Length | 41.0 | 41.0 | 41.0 | 41.0 | 41.0 | 41.1 | 41.1 | 41.2 |
| Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4.0 | 4.0 | 4.0 | 4.0 |
| Trail | 6.8 | 6.2 | 5.8 | 5.6 | 5.8 | 5.7 | 5.6 | 5.6 |
| Wheelbase | 97.2 | 97.4 | 97.7 | 98.1 | 98.3 | 99.2 | 100.1 | 101.0 |
| Standover | 69.2 | 71.1 | 73.2 | 74.4 | 76.8 | 79.3 | 81.1 | 82.9 |
| Frame Reach | 37.3 | 37.8 | 38.3 | 38.6 | 39.1 | 39.6 | 39.9 | 40.3 |
| Frame Stack | 50.7 | 52.1 | 53.3 | 54.1 | 56.3 | 58.1 | 60.1 | 62.0 |
| Saddle rail height min (w/short mast) | 55.5 | 58.5 | 61.5 | 64.0 | 67.0 | 69.0 | 71.0 | 73.0 |
| Saddle rail height max (w/short mast) | 61.5 | 64.5 | 67.5 | 70.0 | 73.0 | 75.0 | 77.0 | 79.0 |
| Saddle rail height min (w/tall mast) | 59.0 | 62.0 | 65.0 | 67.5 | 70.5 | 72.5 | 74.5 | 76.5 |
| Saddle rail height max (w/tall mast) | 65.0 | 68.0 | 71.0 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
