Description

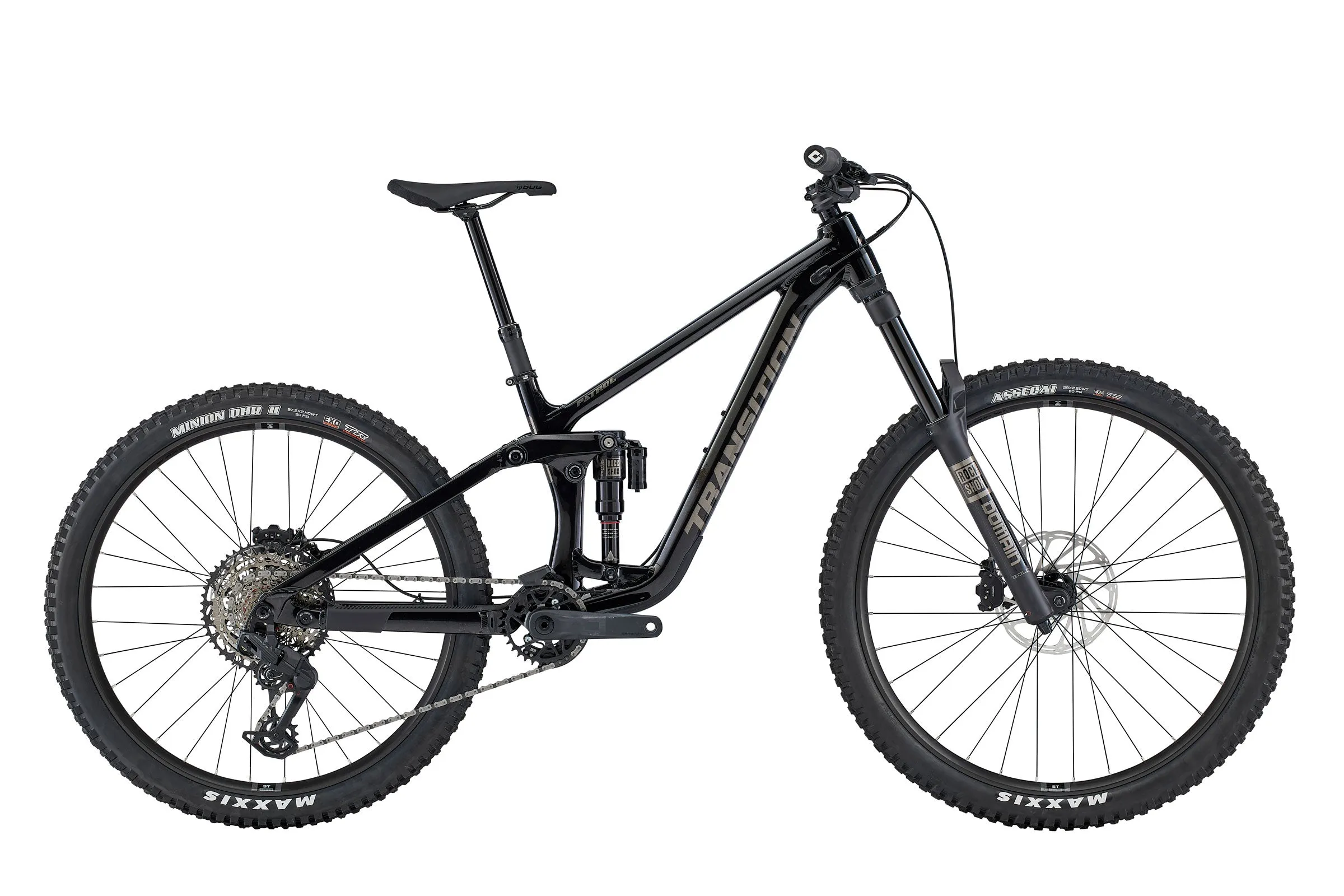

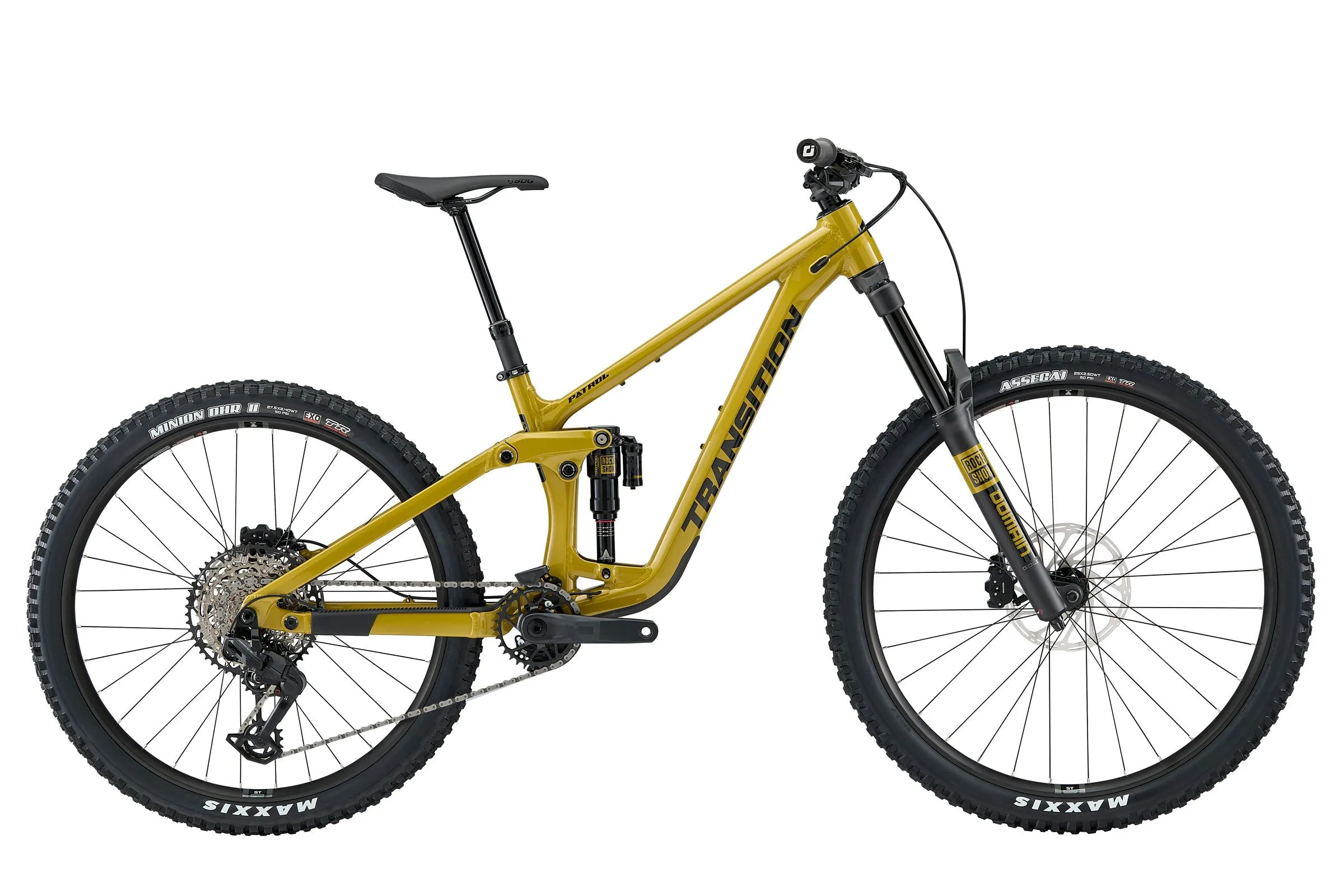

The Purebred Party Animal
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail.
Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
Specification
| FRAME | Patrol Alloy 160mm |
| WHEEL SIZE | Mixed |
| REAR SHOCK | RockShox Super Deluxe Base (205x60mm) |
| FORK | RockShox Domain Gold RC (160mm) |
| HEADSET | FSA NO.55R/57 |
| STEM | RaceFace Aeffect R (40mm) |
| HANDLEBAR | RaceFace Chester 35 SM (780x20mm) MD/LG/XL (780x35mm) |
| GRIPS | ODI Longneck V2.1 Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | SDG Tellis 31.6mm SM (150mm) MD (170mm) LG (200mm) XL (230mm) |
| BRAKES | SRAM Maven Base |
| ROTORS | SRAM Centerline (200mm) |
| SHIFTER | SRAM Eagle 70 MMX |
| DERAILLEUR | SRAM Eagle 70 |
| CASSETTE | SRAM XS 1270 (10-52t) |
| CHAIN | SRAM Eagle 70 |
| CRANK | SRAM Eagle 70 DUB (32t/165mm) |
| CHAINGUIDE | e13 Vario Chainguide - Enduro |
| RIMS | WTB ST i30 |
| SPOKES | Pillar Double Butted |
| HUBS | Novatech D791SB/D902SB |
| TIRE/FRONT | Maxxis Assegai 3C EXO/TR (2.5) |
| TIRE/REAR | Maxxis Minion DHRII 3C EXO/TR (2.4) |
| INCLUDED | Tubeless Valves & Sealant |
Geometry
| SM | MD | LG | XL | |
| High | Low | High | Low | High | Low | High | Low | |
| Fits Rider Heights | 5'0" - 5'7" | 5'6" - 5'11" | 5'9" - 6'3" | 6'1" - 6'7" |
| A.REACH | 420 | 415 | 455 | 450 | 480 | 475 | 510 | 505 |
| B.STACK | 623 | 628 | 623 | 628 | 632 | 637 | 641 | 646 |
| C.EFFECTIVE TOPTUBE LENGTH | 540 | 543 | 575 | 578 | 603 | 606 | 636 | 639 |
| D.SEATTUBE LENGTH | 360 | 390 | 430 | 460 |
| E.EFFECTIVE SEATTUBE ANGLE | 79.6 | 79.1 | 78.8 | 78.3 | 78.1 | 77.6 | 77.5 | 77 |
| SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 600 | 660 | 720 | 780 |
| ACTUAL SEATTUBE ANGLE | 70.5 | 70 | 70.5 | 70 | 70.5 | 70 | 70.5 | 70 |
| SEATTUBE OFFSET AT BOTTOM BRACKET | 100 | 100 | 100 | 100 |
| F.HEADTUBE LENGTH | 100 | 100 | 110 | 120 |
| G.HEADTUBE ANGLE | 63.5 | 63 | 63.5 | 63 | 63.5 | 63 | 63.5 | 63 |
| H.CHAINSTAY LENGTH | 434 | 436 | 434 | 436 | 440 | 442 | 440 | 442 |
| I.WHEELBASE | 1196 | 1198 | 1231 | 1233 | 1266 | 1268 | 1301 | 1303 |
| J.BOTTOM BRACKET DROP (FRONT) | 35 | 42 | 35 | 42 | 35 | 42 | 35 | 42 |
| J.BOTTOM BRACKET DROP (REAR) | 15 | 22 | 15 | 22 | 15 | 22 | 15 | 22 |
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 340 | 333 | 340 | 333 | 340 | 333 | 340 | 333 |
| STANDOVER HEIGHT | 675 | 685 | 690 | 700 | 705 | 715 | 720 | 730 |
