Description

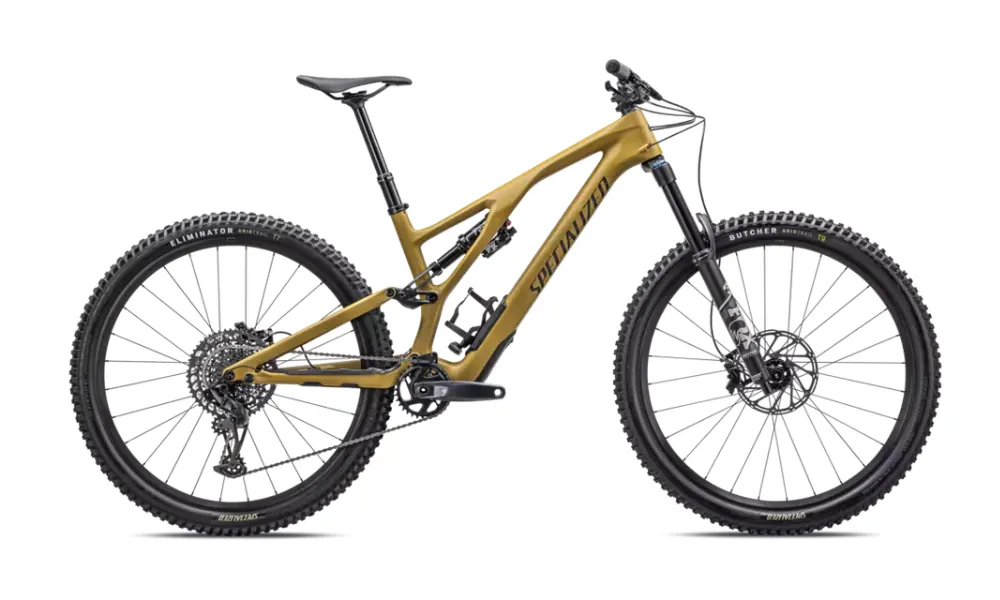

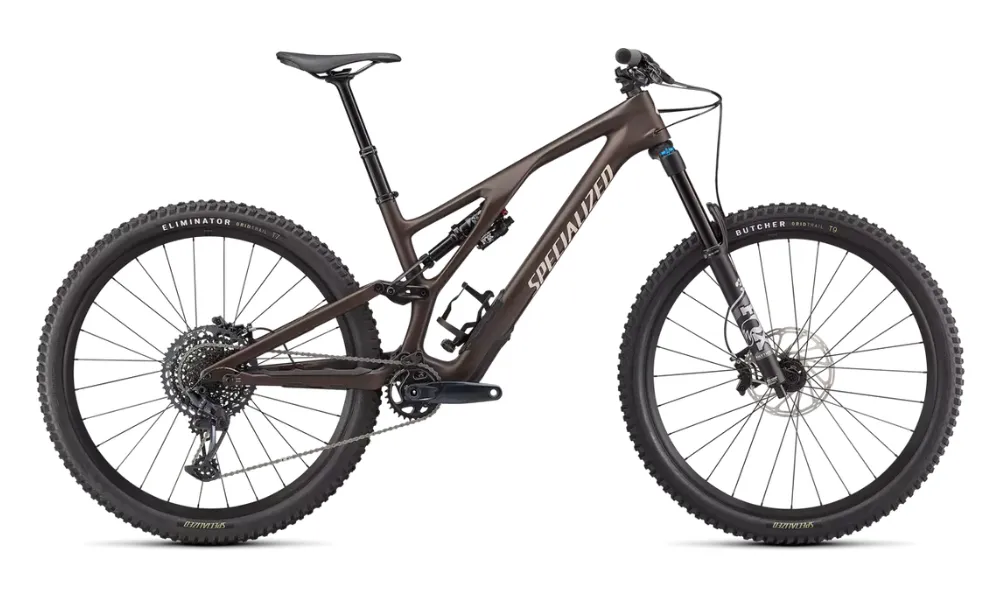

In order to bring EVO fun to the masses, we took our FACT 11m carbon frame (yes, the same one as the S-Works), dressed it with a bullet-proof SRAM GX Eagle 12-speed drivetrain and a tough-as-nails set of alloy wheels, and set it loose to shred unsuspecting trails everywhere.
- All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, weve not only improved the pedaling performance of the Stumpjumper, but weve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
- The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
- Rider-First Engineered frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether youre a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, youll experience the same ride traits rail-sharp cornering and balanced front and rear stiffness at the lightest-possible weight.
- We introduced the SWAT door on the Stumpjumper in 2016, adding room IN your frame for those oh sh**t necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, we have increased the volume and added a SWAT Bladder, giving you an extra 22oz of water storage the same size as a small water bottle hidden in your downtube.
Specification
Frameset
- SWAT
- Seat Binder
- Alloy, 38.6mm
- Frame
- FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
- Fork
- FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel
- Rear Shock
- FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm
- Stem
- Alloy Trail Stem, 35mm bar bore
- Saddle
- Bridge Comp, Hollow Cr-mo rails, 155/143mm
- Tape
- Specialized Trail Grips

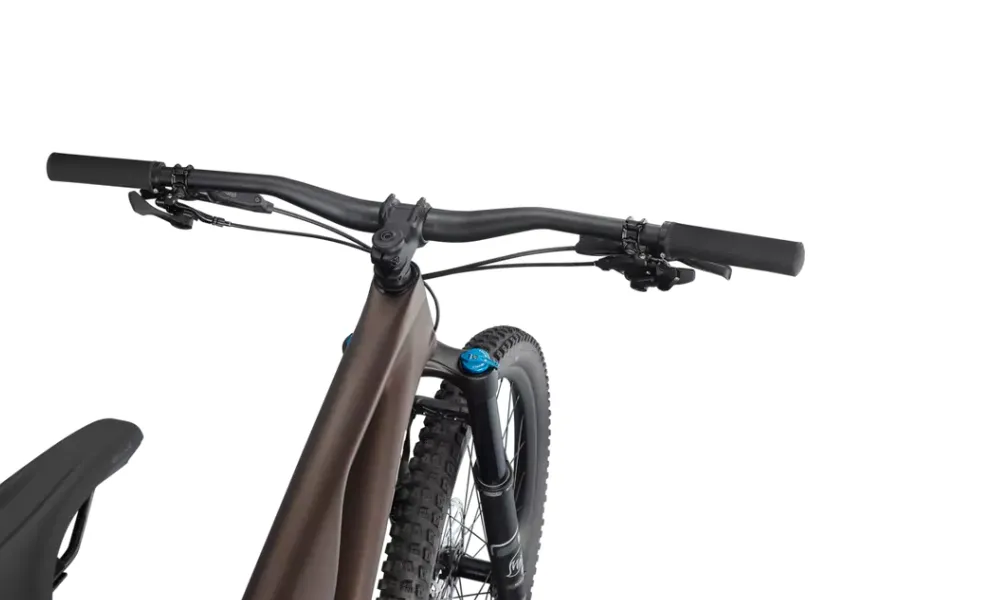

- Handlebars
- Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
- SeatPost
- X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
- Front Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
- Rear Brake
- SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
- Bottom Bracket
- SRAM DUB, BSA 73mm, Threaded
- Rear Derailleur
- SRAM GX Eagle, 12-speed
- Shift Levers
- SRAM GX, trigger, 12-speed
- Chain
- SRAM NX Eagle, 12-speed
- Crankset
- SRAM X1 Eagle, DUB, 32T, XS: 165mm, SM: 170mm, M-XL: 175mm
- Cassette
- Sram XG-1275, 12-speed, 10-52t
- Chainrings
- Steel, 30T
- Front Hub
- Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
- Front Tire
- Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"
- Spokes
- DT Swiss Industry
- Rear Tire
- Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 29x2.3"
- Rear Hub
- REAR HUB,BEAR PAWL BMB-00412O1C,SRAM XD STEEL FHB ,6 BOLT DISC,SEALED CARTRIDGE BEARING,28H,12MM AXLE,148MM SPACING
- Rims
- Specialized 29, hookless alloy, 30mm inner width, tubeless ready
- Inner Tubes
- TUBES,STANDARD 48MM PV LOW LEAD 29x1.75/2.4, MAXXIS BRAND
Geometry
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
| Crank Length | 165 | 170 | 170 | 170 | 170 | 175 |
| Handlebar Width | 800 | 800 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 50 | 50 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 170 | 170 | 190 |
| Seat Tube Angle | 78 | 77.6 | 77.2 | 76.9 | 77 | 77 |
| Max Seatpost Insertion | 180 | 180 | 200 | 220 | 240 | 260 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
| Stack | 613 | 617 | 626 | 635 | 644 | 654 |
| Reach | 408 | 428 | 448 | 475 | 498 | 528 |
| Headtube Length | 95 | 95 | 105 | 115 | 125 | 135 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 335 | 340 | 340 | 340 | 340 | 340 |
| BB Drop | 40 | 35 | 35 | 35 | 35 | 35 |
| Trail | 131 | 131 | 131 | 131 | 131 | 131 |
| Fork Length (full) | 561 | 571 | 571 | 571 | 571 | 571 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 732 | 756 | 780 | 809 | 838 | 873 |
| Chainstay Length | 438 | 438 | 438 | 438 | 448 | 448 |
| Wheelbase | 1167 | 1191 | 1216 | 1247 | 1285 | 1319 |
| Top-tube Length (horizontal) | 538 | 564 | 590 | 623 | 647 | 679 |
| Bike Standover Height | 733 | 764 | 763 | 762 | 767 | 770 |
| Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
