Description
THE TRUSTY TOOL FOR ANY TRAIL

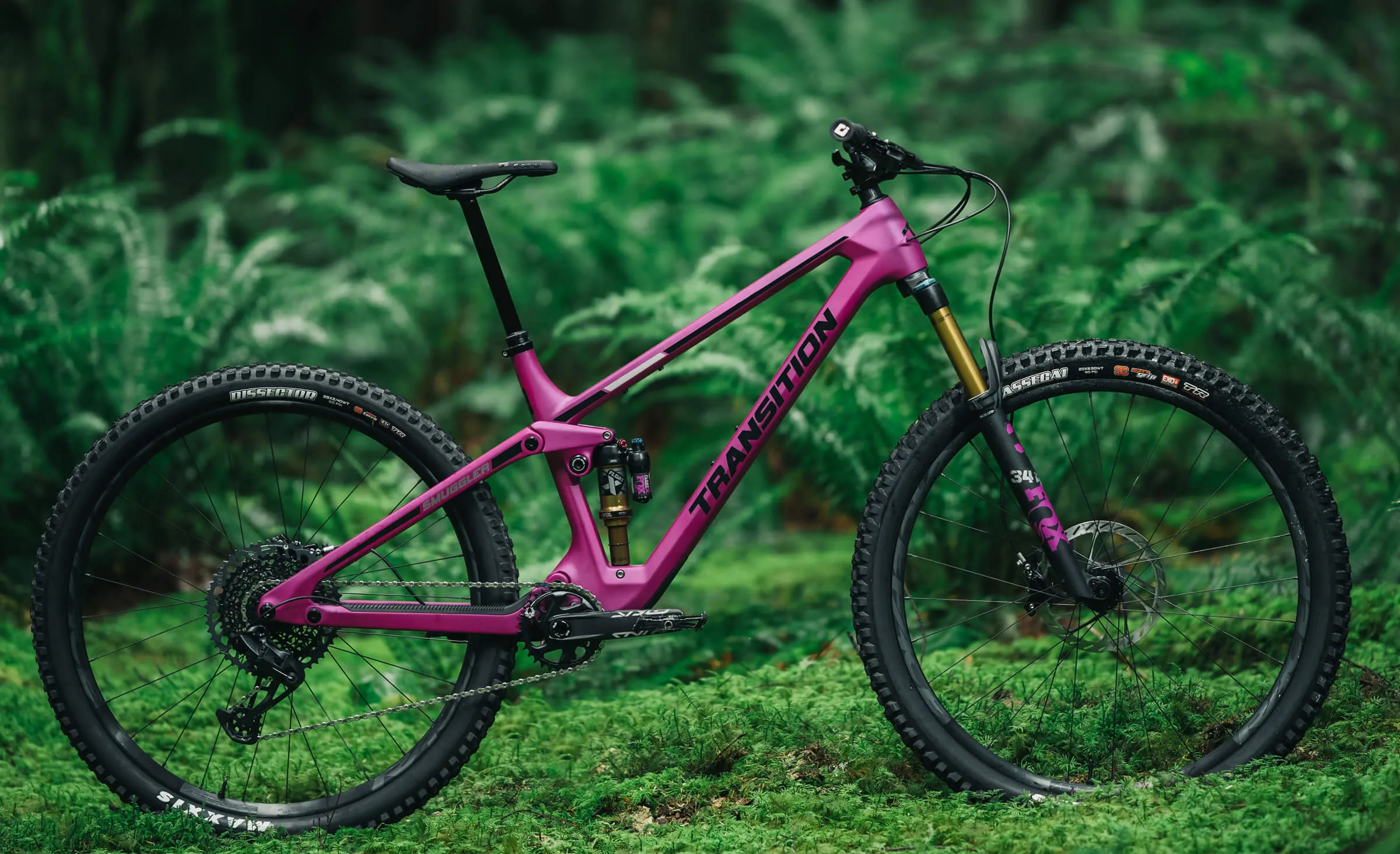

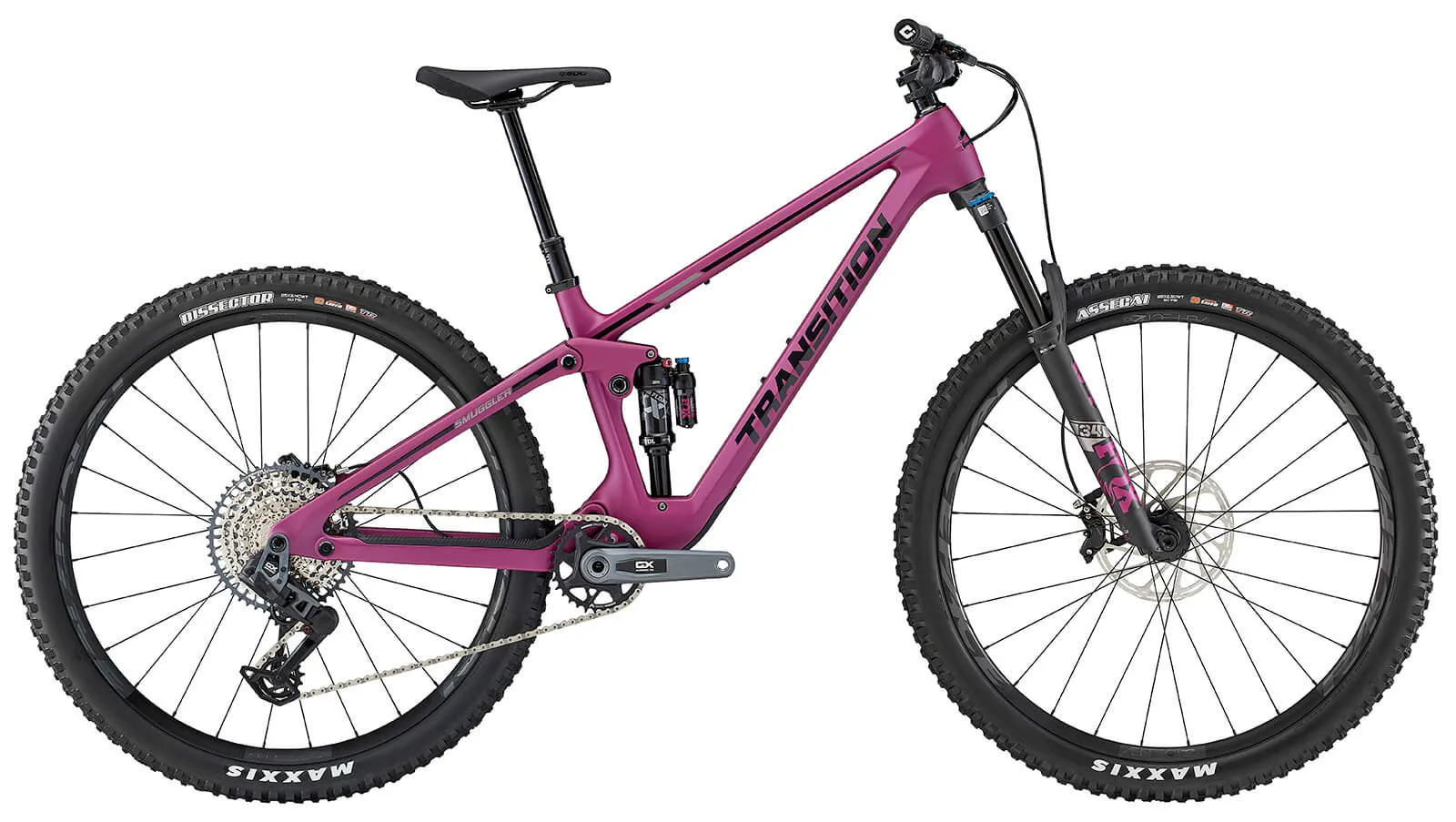

Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.
With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.
Specification
WHEEL SIZE | 29" |

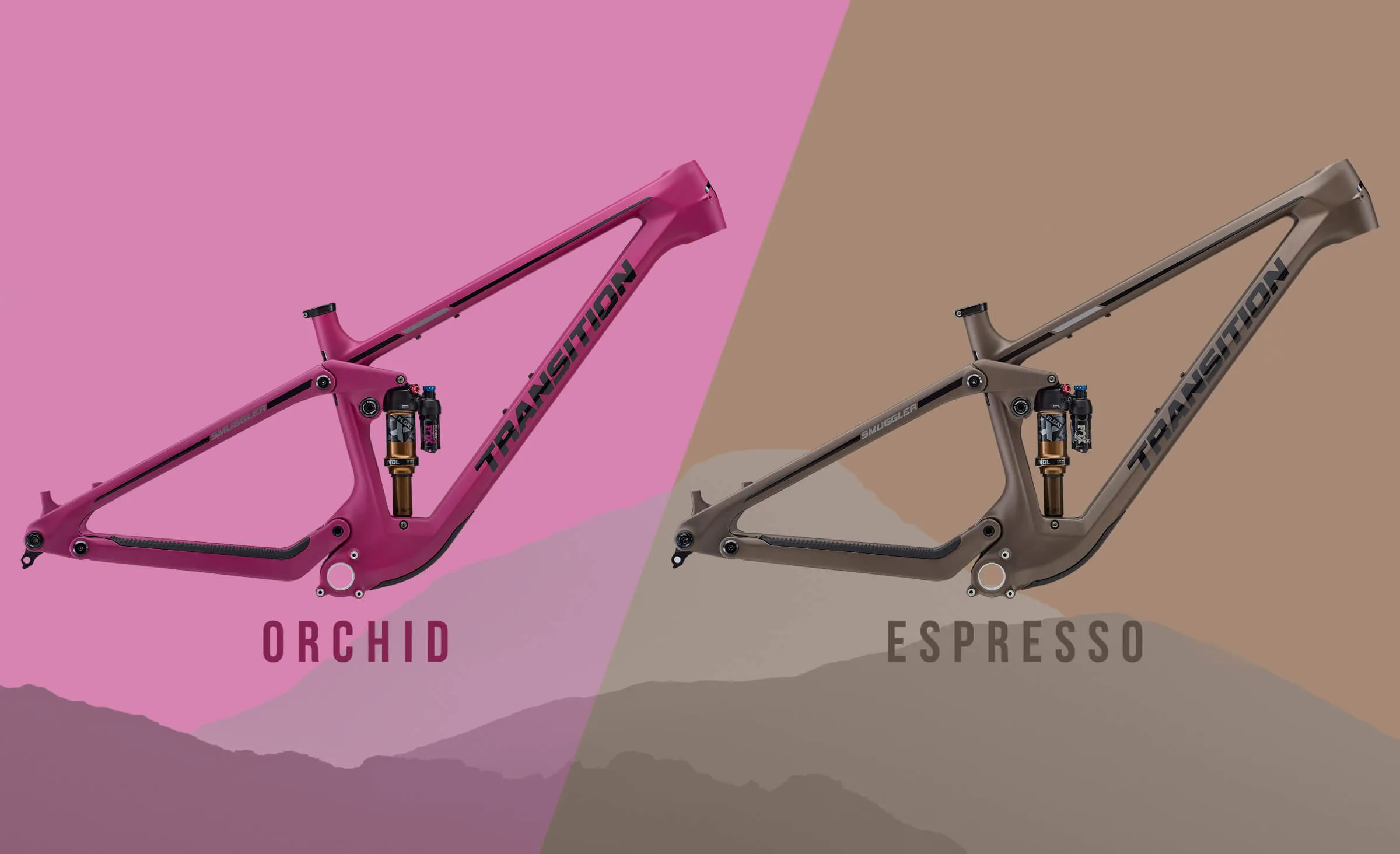

FRAME | Smuggler Carbon 130mm |
REAR SHOCK | Fox Float X Performance Elite 2 Position |
FORK | Fox Float 34 Grip 2 Performance Elite (140mm) |
HEADSET | FSA NO.42/48/ACB |
STEM | ANVL Swage (40mm) |
HANDLEBAR | ANVL Mandrel Alloy 35 SM (800x20) MD/LG/XL (800x30) XXL (800x40) |
GRIPS | ODI Elite Flow |
SADDLE | SDG Bel Air V3 |
SEATPOST | OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) |
BRAKES | SRAM Code RSC |
ROTORS | SRAM Centerline (200/180mm) |
SHIFTER | SRAM GX AXS |
DERAILLEUR | SRAM GX AXS |
CASSETTE | SRAM GX AXS |
CHAIN | SRAM GX AXS |
CRANK | SRAM GX AXS (170mm x 32t) |
RIMS | Raceface Aeffect R |
SPOKES | Raceface 2.0/1.7/2.0 |
HUBS | Raceface Trace 28H |
TIRE/FRONT | Maxxis Assegai EXO (2.5) |
TIRE/REAR | Maxxis Dissector 3C EXO (2.4) |
INCLUDED | SRAM AXS Battery Charger Tubeless Valves & Sealant |
WEIGHT | TBD |
Geometry
| SIZE | SM | MD | LG | XL | XXL |
| REACH | 430 | 460 | 485 | 510 | 535 |
| STACK | 607 | 616 | 625 | 635 | 644 |
| EFFECTIVE TT LENGTH | 555 | 588 | 617 | 645 | 670 |
| SEAT TUBE LENGTH (CARBON) | 360 | 390 | 430 | 460 | 490 |
| SEAT TUBE LENGTH (ALLOY) | 375 | 390 | 430 | 460 | 490 |
| EFFECTIVE ST ANGLE | 79.3 | 78.6 | 78.1 | 77.6 | 77.3 |
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 | 820 |
| ACTUAL ST ANGLE | 72 | 72 | 72 | 72 | 72 |
| HEAD TUBE LENGTH | 100 | 110 | 120 | 130 | 140 |
| HEAD TUBE ANGLE | 65 | 65 | 65 | 65 | 65 |
| CHAINSTAY LENGTH (CARBON) | 435 | 435 | 440 | 440 | 440 |
| CHAINSTAY LENGTH (ALLOY) | 437 | 437 | 443 | 443 | 443 |
| WHEELBASE (CARBON) | 1179 | 1213 | 1247 | 1277 | 1306 |
| WHEELBASE (ALLOY) | 1181 | 1215 | 1250 | 1280 | 1309 |
| BOTTOM BRACKET DROP | 35 | 35 | 35 | 35 | 35 |
| ESTIMATED BB HEIGHT | 340 | 340 | 340 | 340 | 340 |
