Description

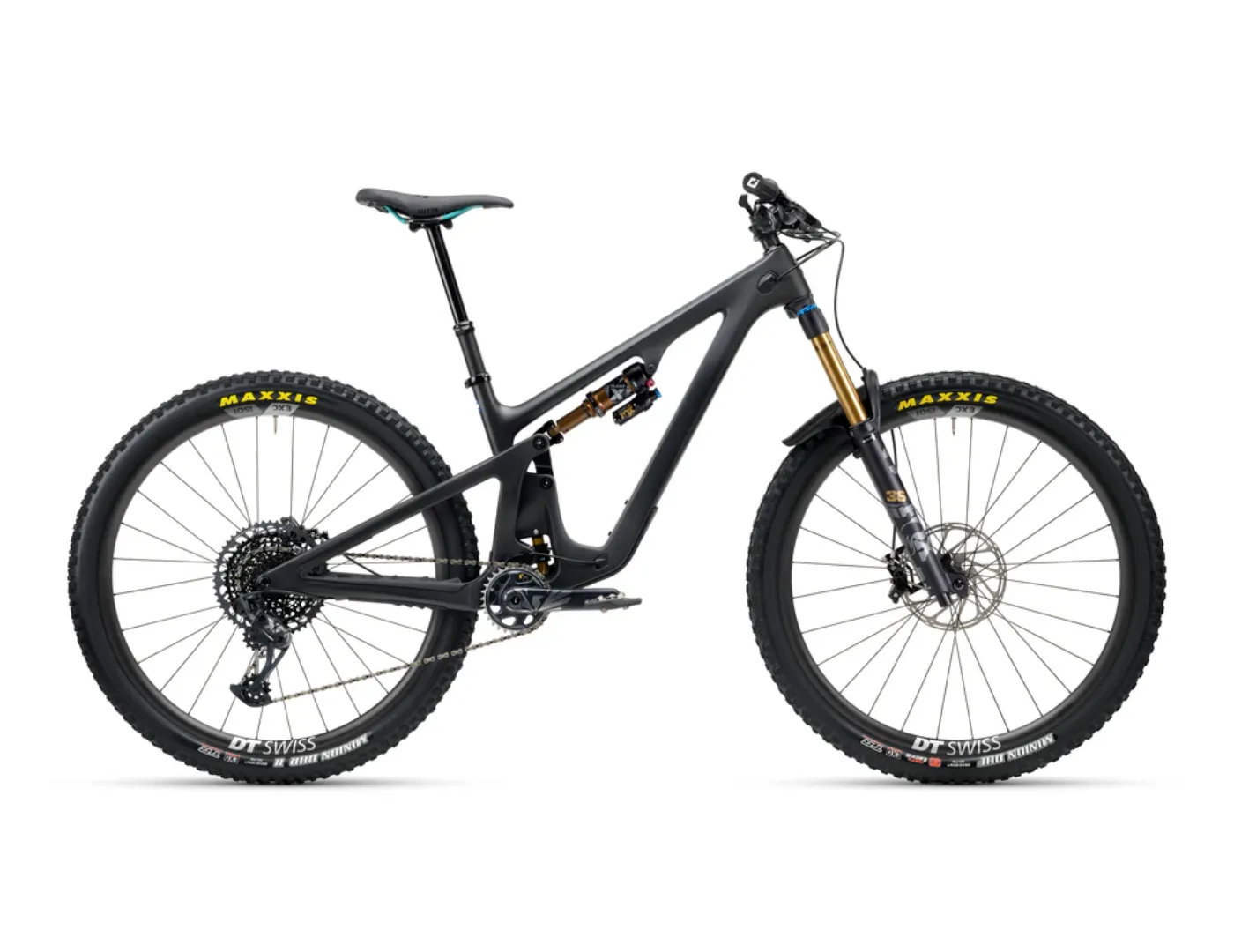

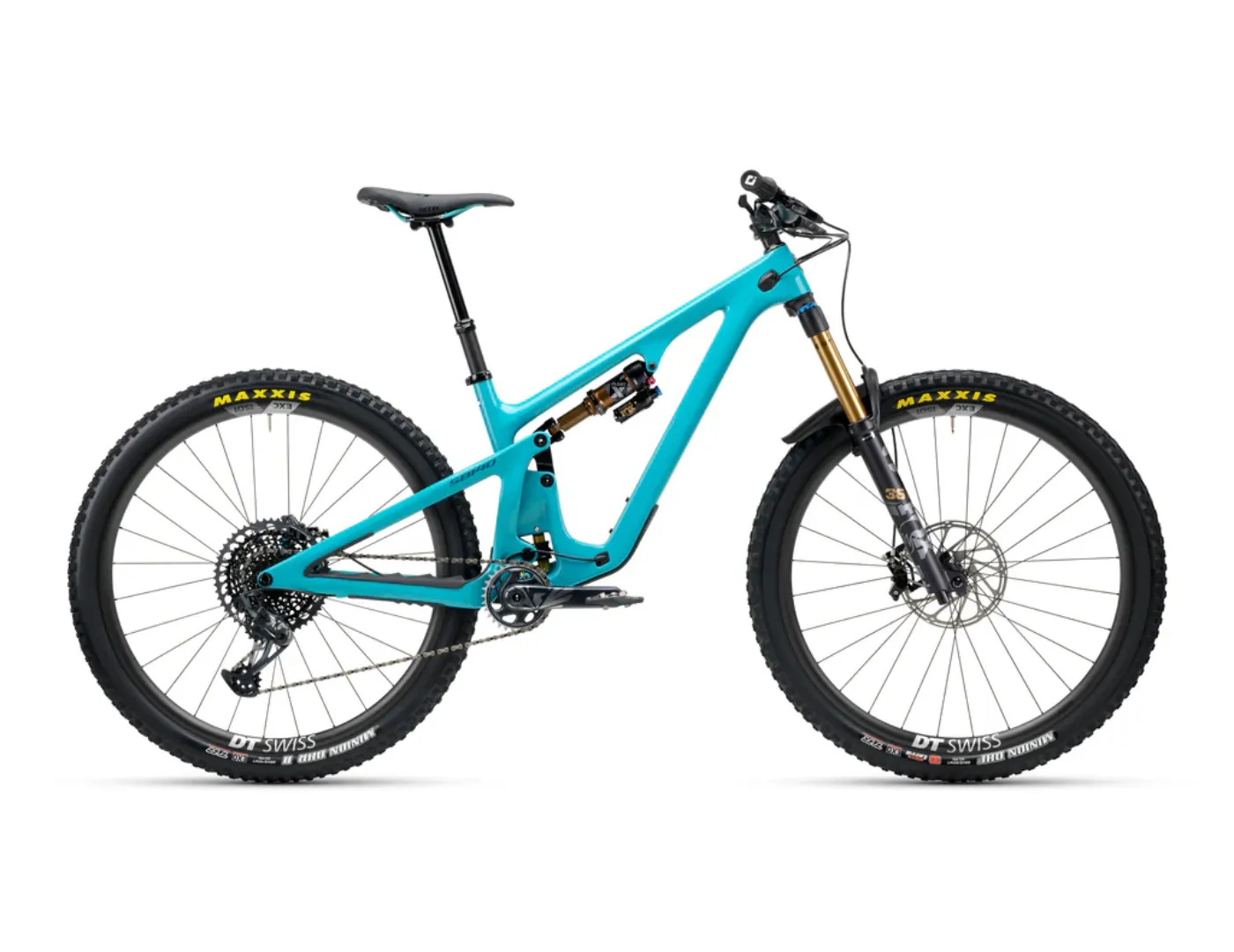

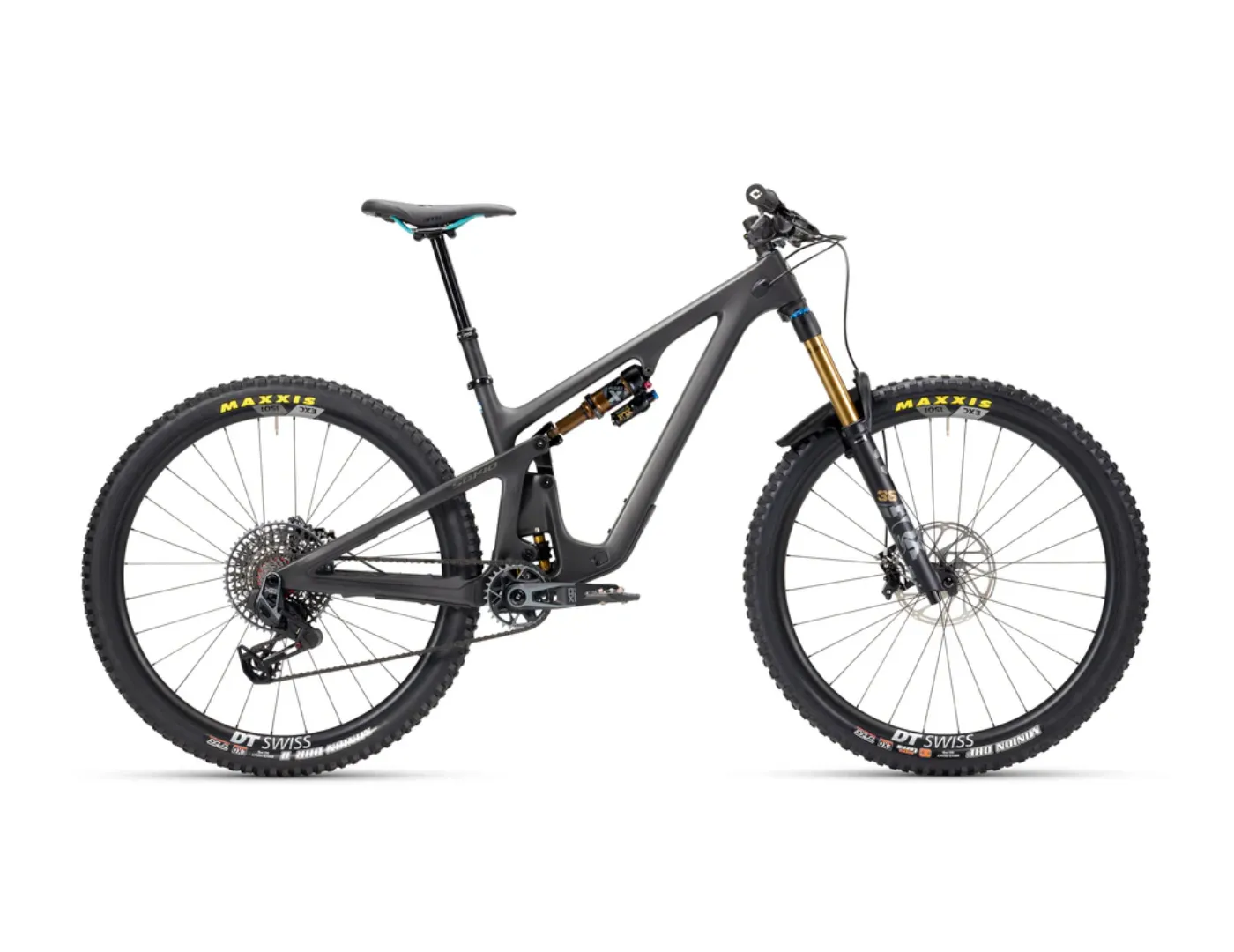

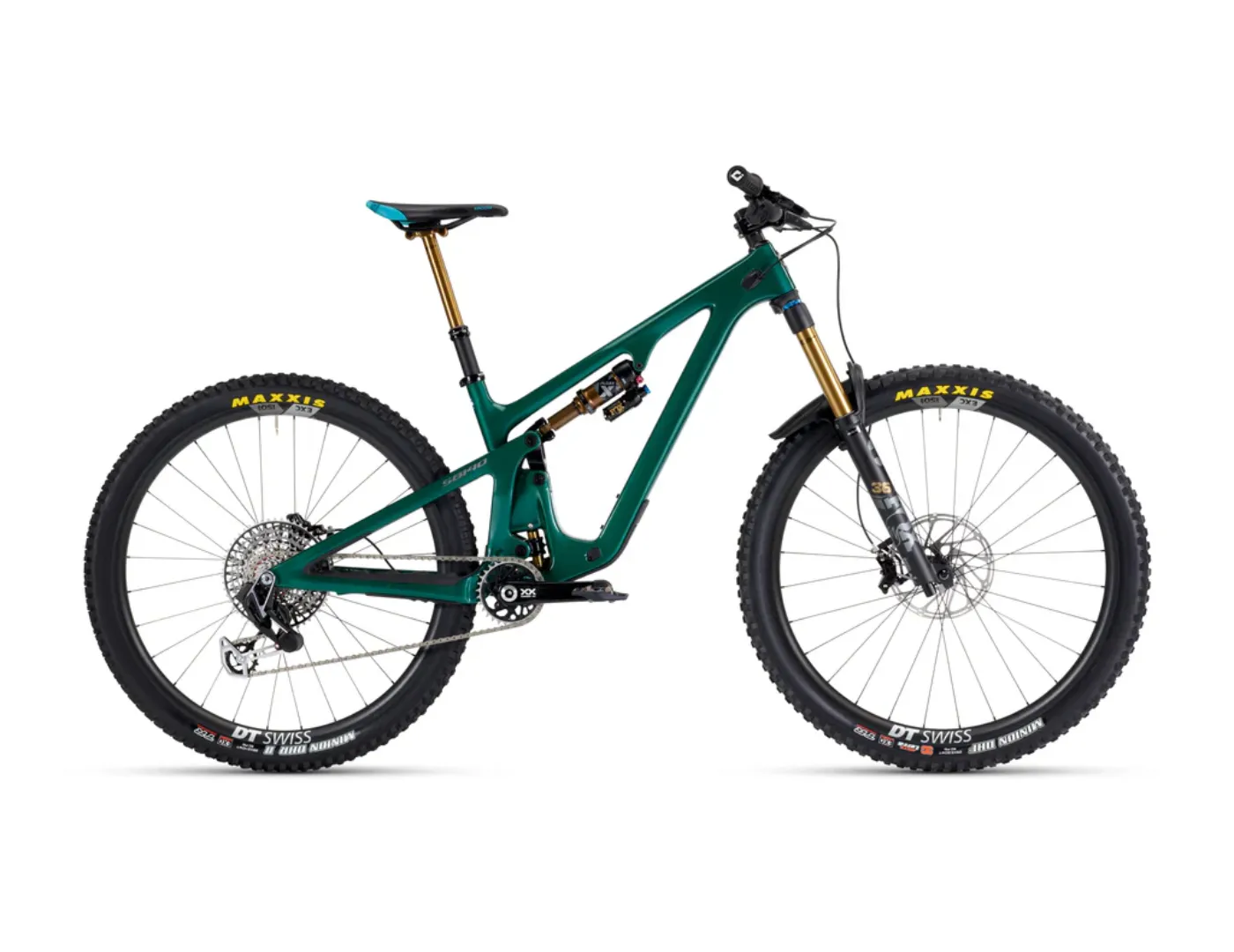

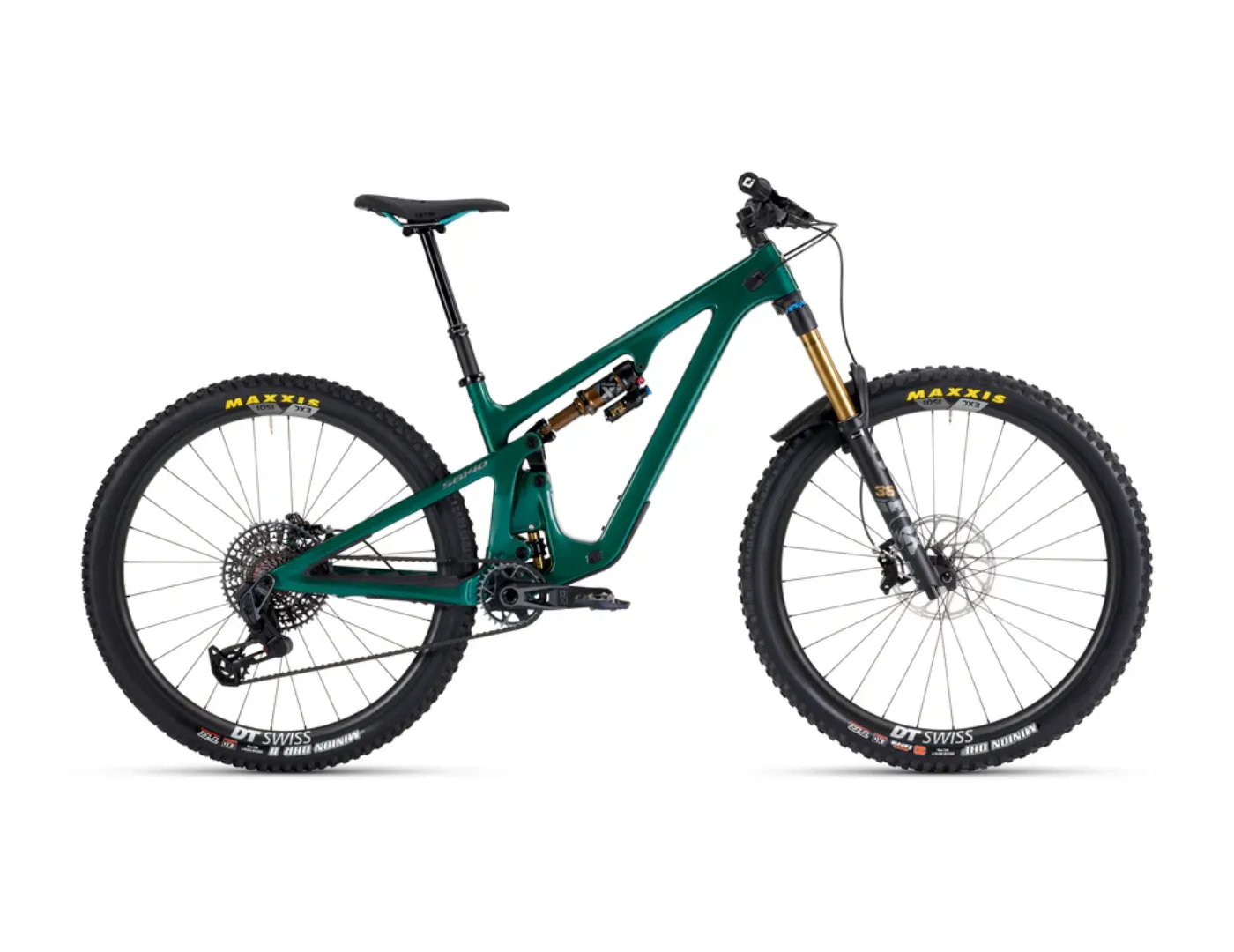

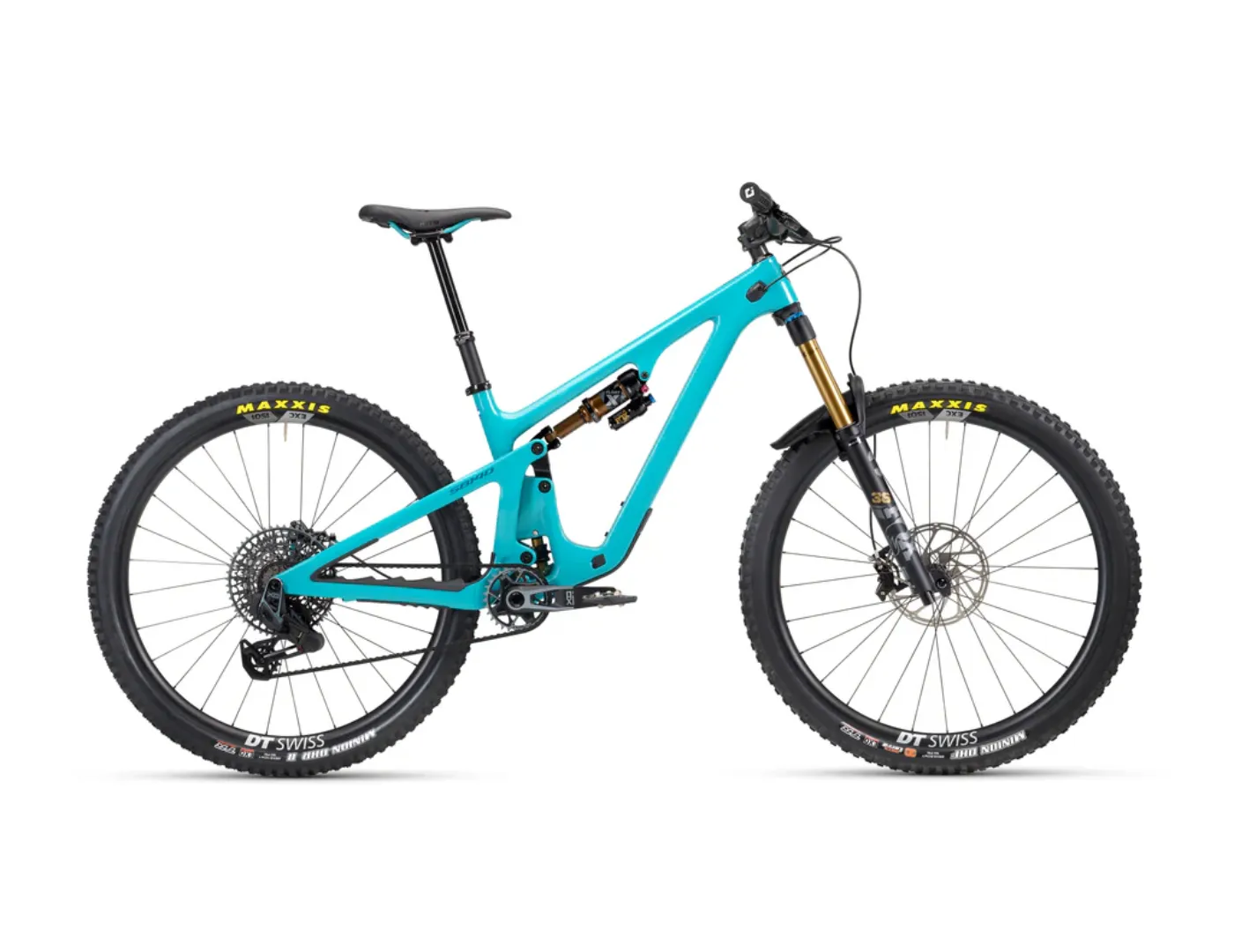

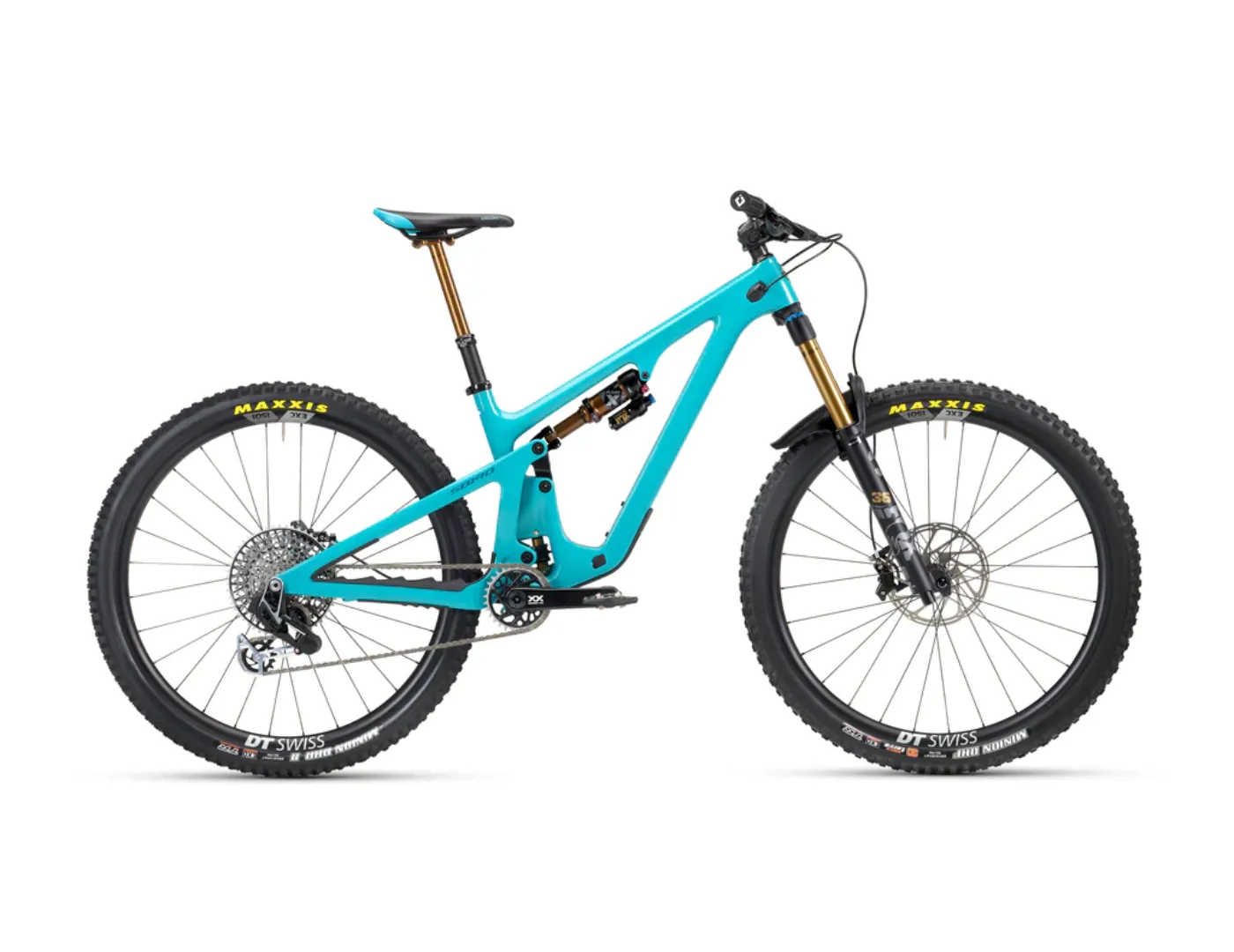

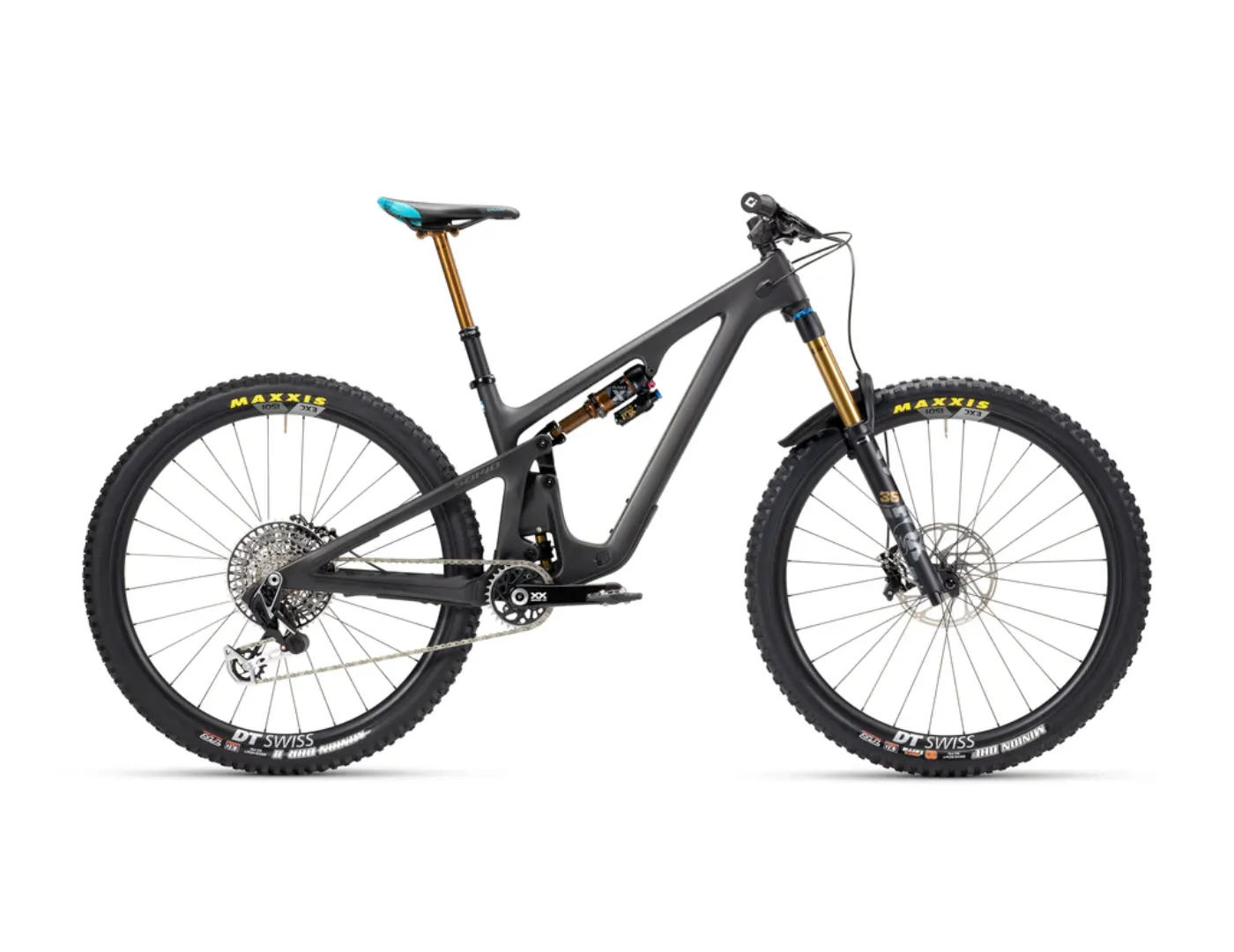

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rain and the air. The unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.
This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. "Trail bike" is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out what's on the other side.
Specification
| T2 LR | T3 LR | T4 LR | |
| TRAVEL | TRAVEL 140MM (5.5") | TRAVEL 140MM (5.5") | TRAVEL 140MM (5.5") |
| MATERIAL | MATERIAL TURQ SERIES | MATERIAL TURQ SERIES | MATERIAL TURQ SERIES |
| FORK | FORK FOX FACTORY 36 GRIP X2/160MM | FORK FOX FACTORY 36 GRIP X2/160MM | FORK FOX FACTORY 36 GRIP X2/160MM |
| SHOCK | SHOCK FOX FACTORY FLOAT X | SHOCK FOX FACTORY FLOAT X | SHOCK FOX FACTORY FLOAT X |
| WHEELSET | WHEELSET DT SWISS XM1700 30MM | WHEELSET DT SWISS XM1700 30MM | WHEELSET DT SWISS XM1700 30MM |
| REAR DER | REAR DER SRAM X01 EAGLE | REAR DER SRAM X0 EAGLE AXS TRANSMISSION | REAR DER SRAM XX EAGLE AXS TRANSMISSION |
| SHIFT | SHIFT SRAM X01 EAGLE | SHIFT SRAM AXS POD CONTROLLER | SHIFT SRAM AXS POD CONTROLLER |
| CRANK | CRANK SRAM X1 EAGLE CARBON 30T 170MM | CRANK SRAM X0 EAGLE TRANSMISSION 30T 170MM | CRANK SRAM XX EAGLE TRANSMISSION 30T 170MM |
| BB | BB SRAM DUB BSA 73 | BB SRAM DUB BSA 73 | BB SRAM DUB BSA 73 |
| CASSETTE | CASSETTE SRAM X01 EAGLE 1295 10-52 | CASSETTE SRAM X0 EAGLE TRANSMISSION 10-52 | CASSETTE SRAM XX EAGLE TRANSMISSION 10-52 |
| CHAIN | CHAIN SRAM GX EAGLE | CHAIN SRAM X0 EAGLE TRANSMISSION FLATTOP | CHAIN SRAM XX EAGLE TRANSMISSION FLATTOP |
| BRAKES | BRAKES SRAM CODE RSC | BRAKES SRAM CODE RSC | BRAKES SRAM CODE RSC |
| ROTOR | ROTOR F/R SRAM CENTERLINE 200/SRAM CENTERLINE 180 | ROTOR F/R SRAM CENTERLINE 200/SRAM CENTERLINE 180 | ROTOR F/R SRAM CENTERLINE 200/SRAM CENTERLINE 180 |
| POST | POST FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM | POST FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM | POST FOX TRANSFER FACTORY 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM |
| TIRE (F) | TIRE (F) MAXXIS MINION DHF 2.5 EXO | TIRE (F) MAXXIS MINION DHF 2.5 EXO | TIRE (F) MAXXIS MINION DHF 2.5 EXO |
| TIRE (R) | TIRE (R) MAXXIS MINION DHR II 2.4 EXO | TIRE (R) MAXXIS MINION DHR II 2.4 EXO | TIRE (R) MAXXIS MINION DHR II 2.4 EXO |
| HEADSET | HEADSET CANE CREEK 40 INTEGRATED | HEADSET CANE CREEK 40 INTEGRATED | HEADSET CANE CREEK 110 INTEGRATED |
| BAR | BAR YETI CARBON 35X780MM | BAR YETI CARBON 35X780MM | BAR YETI CARBON 35X780MM |
| STEM | STEM BURGTEC ENDURO MK3 35X50MM | STEM BURGTEC ENDURO MK3 35X50MM | STEM BURGTEC ENDURO MK3 CNC 35X50MM |
| GRIPS | GRIPS ODI ELITE PRO | GRIPS ODI ELITE PRO | GRIPS ODI ELITE PRO |
| SADDLE | SADDLE SILVERADO CUSTOM | SADDLE SILVERADO CUSTOM | SADDLE ERGON SM ENDURO SADDLE |
Geometry
| XS | SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 14.4 | 15.7 | 17.3 | 18.5 | 19.1 |
| B | EFFECTIVE TOPTUBE LENGTH | 22.5 | 23.7 | 24.6 | 25.7 | 26.4 |
| C | HEADTUBE ANGLE | 65 | 65 | 65 | 65 | 65 |
| D | EFF. SEAT TUBE ANGLE | 77 | 77 | 77 | 77 | 77 |
| E | ACTUAL SEAT TUBE ANGLE | 71.8 | 72.2 | 72.4 | 72.8 | 73.3 |
| F | CHAINSTAY LENGTH | 17.2 | 17.2 | 17.3 | 17.4 | 17.5 |
| G | WHEELBASE | 46.8 | 48.1 | 49 | 50.3 | 51.3 |
| H | ESTIMATED BB HEIGHT | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| I | STANDOVER | 28.6 | 28.8 | 29.0 | 29.1 | 29.3 |
| J | HEADTUBE LENGTH | 3.6 | 3.7 | 4.0 | 4.4 | 5.3 |
| K | FORK AXLE TO CROWN | 22.6 | 22.6 | 22.6 | 22.6 | 22.6 |
| L | FORK OFFSET | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 24.3 | 24.4 | 24.6 | 25.7 | 26.4 |
| N | REACH | 16.9 | 18.1 | 18.9 | 19.9 | 20.5 |
| O | FRONT CENTER | 29.6 | 30.8 | 31.7 | 32.9 | 33.8 |
| P | Vertical Fork Travel | 5.7 | 5.7 | 5.7 | 5.7 | 5.7 |
Size
| SM | 5'1" - 5'7" |
| MD | 5'5 - 5'11" |
| LG | 5'10" - 6'3" |
| XL | 6'1 - 6'7" |
| 2XL | 6'5 - 6'11" |
