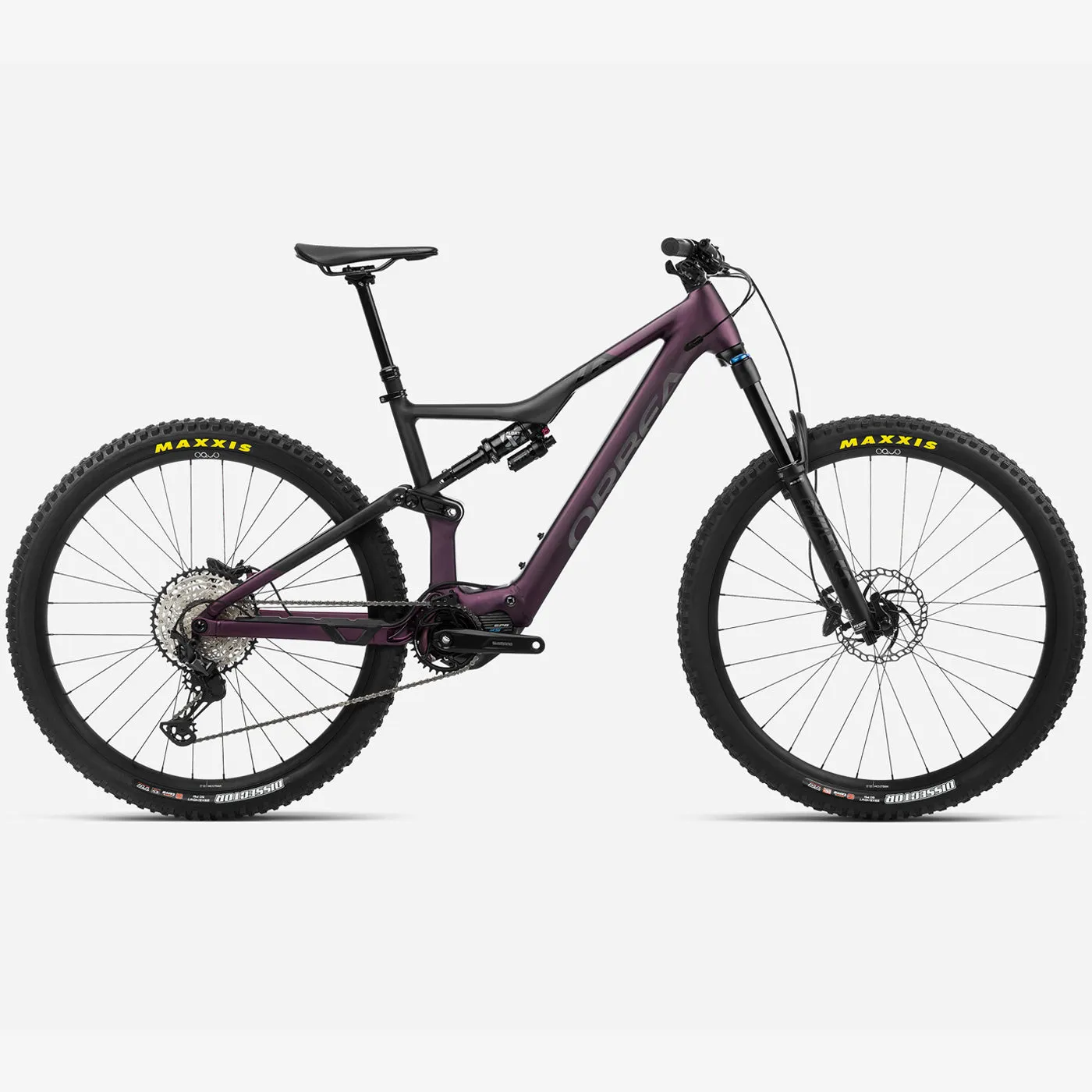

Orbea Rise h10, the same experience as Rise, but in aluminum. The Rise H is equipped with the innovative and highly optimized 540 WH MAIN battery. It is the lightest e-bike in its class, which means that no other aluminum ebike with the same range and power reaches its level. This aspect is fundamental for us, as we would not have accepted anything other than the fun driving feeling and the natural pedaling of our Rise family, so loved by users. It is the most advanced aluminum frame, using a hydroforming process and triple butted tubes, we have perfected the dimensions of the walls to save weight and strengthen the stress zones. The highly polished finishes look similar to a carbon frame and increase fatigue resistance on welds.

• Frame: Orbea Rise Hydro 2022 140mm travel 29 "Boost 12x148.
• Shock: Fox Float DPS Factory 3-Position Adjust Evol Kashima custom tune 210x55mm.
• Fork: Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima.
• Crankset: e * thirteen e * spec Direct Mount 32T Boost.
• Crank arm: e * thirteen Plus Alu.
• Headset: Acros Alloy 1-1 / 8 - 1-1 / 2 "Integrated.
• Handlebar: Race Face Next R 35 20mm Rise 780mm.
• Stem: Race Face Aeffect R 35mm interface.
• Levers: Shimano XT M8100 I-Spec EV.
• Brakes: Shimano XT M8100 Hydraulic Disc.
• Brake Discs: 180mm Front / 180mm Rear.
• Sprockets: Shimano CS-M8100 10-51t 12-Speed.
• Gearbox: Shimano XT M8100 SGS Shadow Plus.
• Chain: Shimano M6100.
• Wheels: Race Face TURBINE-R30 TLR 15 / 110mm IS.
• Tire: Maxxis Dissector 2.40 "60 TPI 3CMaxxTerra Exo TLR.
• Tire: Maxxis Rekon 2.40 "120 TPI 3CMaxxTerra Exo TLR.
• Seatpost: OC MC20 Mountain Control Dropper, 31.6mm.
• Remote Seatpost: Shimano SL-MT500 I-Spec EV.
• Saddle: Fizik Taiga S-alloy rail.
• Chain tensioner: Orbea Rise chainguide.
• Motor: Shimano EP8-RS.
• Battery: Orbea RS Internal 540Wh.

• Display: Shimano EW-EN100 Junction.
• Charger: Orbea Smart Charger (42V-4A).
• Remote: Shimano E7000 switch unit for assist.
• Color: Purple (Metallic mulberry/black matt).
