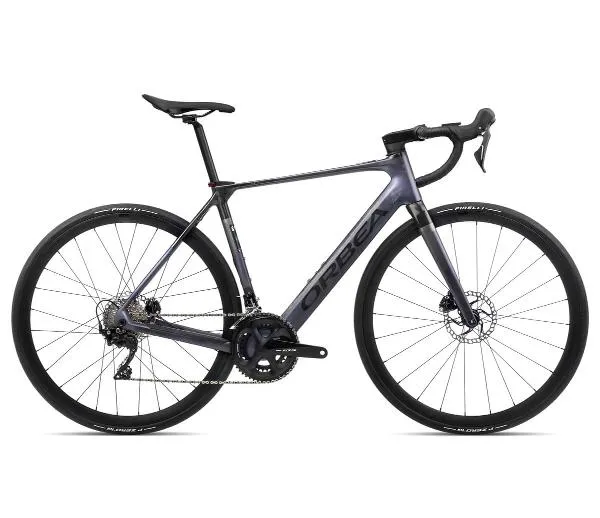

Experience the thrill of perfect synergy between rider and bike with the ORBEA GAIN M30 e-Bike. With natural assistance that blends seamlessly into the background, you'll feel fitter than ever as you ride. Have more fun, go further, and dominate the ride without losing the satisfaction of a hard-earned workout.
New 2024 Model Gain M30 with the latest Mahle X20 Drive System - The new benchmark in the Smart Bike industry
Ultracompact, light and smart system that creates a full range of new riding possibilities while making eBikes look & feel indistinguishable from high performance bikes. The latest innovations create the best support at any cadence, whether racing at top speeds or climbing up a mountain. X20 is designed to drive the rider and the whole industry forward.
Full system integration and lowest system weight in the market makes the X20 system go completely unnoticed until you feel the 55Nm of torque.
New 236 Wh/350 Wh internal batteries which can be complemented with a 171 Wh Range Extender, delivering up to 200 Km Autonomy.
Intelligent fast charging system up to 4A charging the battery up to 80% of its full capacity in less than 2 hours.
The new torque and cadence sensor in the bottom bracket allows the eBike to accurately read each watt of power you apply, giving the user the appropriate response thanks to AI and Machine Learning. The system learns from you and adapts to your needs and the environment at any given moment.
THE PHILOSOPHY OF GAIN
Enough Power is a concept which is central to our vision of e-road. A completely integrated system which brings together power, range and interface to deliver a natural ride with nearly silent, unobtrusive assistance.
SPECIFICATION
| FRAME | ORBEA GAIN CARBON OMR MONOCOQUE STRUCTURE, INTEGRATED SEAT CLAMP WITH STVZO LIGHT, ICR CABLE ROUTING, THRU AXLE 12x142mm REAR, THREAD M12X2 P1, FLAT MOUNT DISC, 700x35 MAX TYRE, BB386 EVO, MAHLE X20 AMC PLUG. |
|---|---|
| FORK | GAIN OMR CARBON FORK, 700X35 MAXIMUN TYRE, FLAT MOUNT DISC MOUNT, 12x100mm THRU AXLE |
| CRANKSET | SHIMANO 105 R7000 34x50T |
| HEADSET | FSA 1-1/2" INTEGRATED ALUMINIUM CUP |
| HANDLEBAR | OC ROAD PERFORMANCE RP20 ALU SL, REACH 80, DROP 125 |
| STEM | OC ROAD PERFORMANCE RP10, -8 |
| SHIFTERS | SHIMANO ST-7020 |
| BRAKES | SHIMANO R7070 HYDRAULIC DISC |
| CASSETTE | SHIMANO 105 R7000 11-32T 11-SPEED |
| REAR DERAILLEUR | SHIMANO ULTEGRA RD- R8000 GS |
| FRONT DERAILLEUR | SHIMANO 105 R7000 |
| CHAIN | KMC X11 |
| WHEELS | ALLOY, TUBELESS, 700C, 21C |
| TYRES | PIRELLI P ZERO RACE TLR 700x30C |
| SEATPOST | CARBON, 27.2mm, SETBACK 20 |
| SADDLE | FIZIK ALIANTE R5 |
| FRONT LIGHT | REAR POSITION LIGHT, ON SADDLE CLAMP, COB LED, ON/OFF, 12 LUMEN. STVZO |
