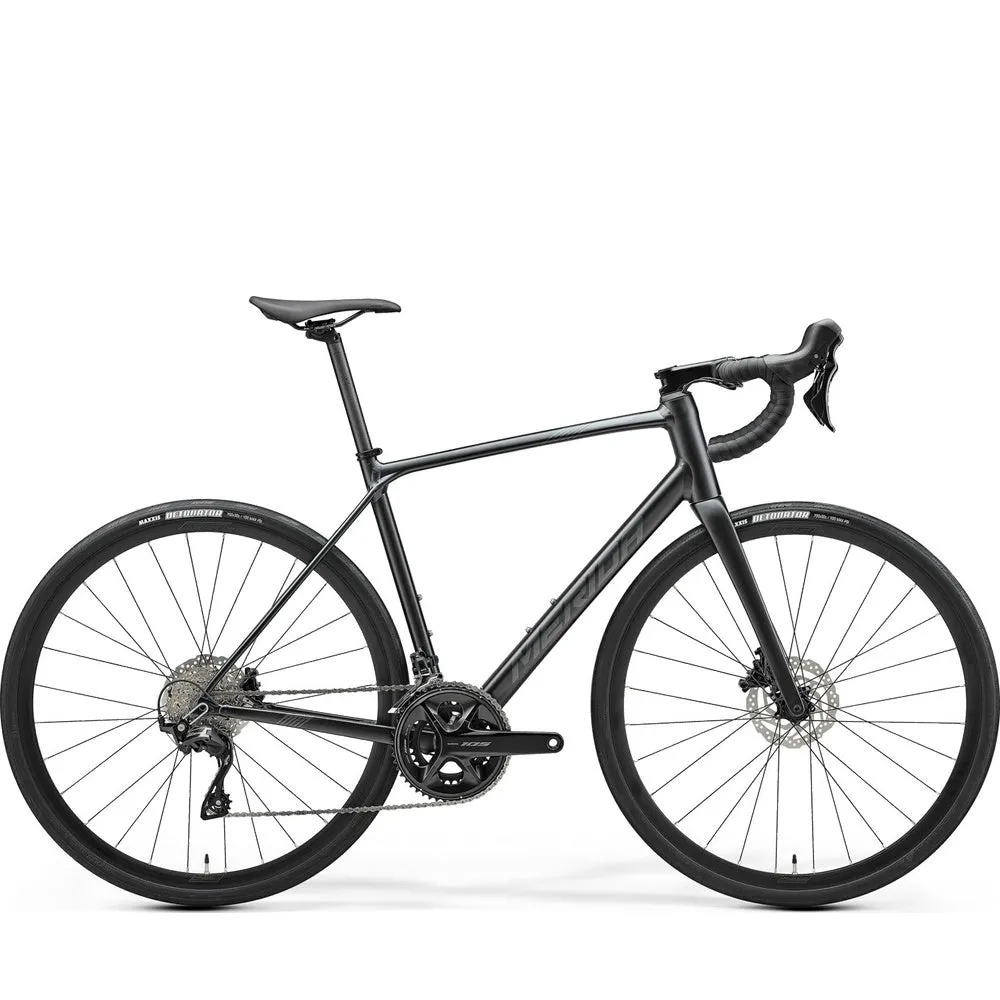

Merida Scultura Endurance 400 Road Bike - Silk Black
New for 2025, the Merida Scultura Endurance 400 features a lightweight 6066 triple-butted aluminium frame with the same geometry as its award-winning carbon counterpart. This cost-effective bike opens up the popular Endurance family to a wider audience without sacrificing the sleek appearance associated with carbon models. Launched in 2021, the comfort-oriented Scultura Endurance quickly received acclaim from cycling press, earning a 'comfort' award and praise for its excellent ride quality, lively feel, and relaxing geometry. Designed for leisure-focused cyclists, it offers ample tyre clearance and a more relaxed riding position, ensuring comfort on even the most pothole-ridden roads. The Scultura Endurance 400 is the ideal choice for those who want to enjoy long hours in the saddle with confidence and ease.
Features
- Lightweight 6066 triple butted and hydroformed aluminium frame with comfort orientated geometry for confidence inspiring handling
- Shimano 105 11-speed groupset
- MERIDA EXPERT SL wheelset
- Full carbon tapered fork
- WIRE PORT cable integration
- Under-saddle pouch with MERIDA multitool
Specification
| FRAME | SCULTURA ENDURANCE LITE I; MATaluminium; 700x35C max./ 700x32C (with fender) max. WHS; 100x12/ 142x12 AST; BB86 BBR |
| FORK | SCULTURA ENDURANCE CF3 DISC; MAT carbon; 700x35C max. WHS |
| BRAKE LEVER | Shimano 105 |
| BRAKE - FRONT | Shimano 105; Hydraulic disc |
| BRAKE - REAR | Shimano 105; Hydraulic disc |
| ROTOR - FRONT | Shimano RT10; 160mm |
| ROTOR - REAR | Shimano RT10; 160mm |
| C-HOUSING | LEX40-L3 |
| CHAIN | Shimano CN-M6100-12 |
| CHAINWHEEL | Shimano 105; FCR7100, 50-34 ATC |
| CRANK/SIZE | 165 mm-4S/3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| BB SET | SM-BB71-41B, Pressfit 86.5 |
| DERAILLEUR - FRONT | Shimano 105 |
| DERAILLEUR - REAR | Shimano 105; GS |
| FREEWHEEL | Shimano CS-R7101; 11-34 ATC; 12 GER |
| PEDAL | |
| GRIP | MERIDA ROAD Expert |
| HANDLEBAR | MERIDA EXPERT SLII; MAT aluminium; 380mm (4S-3S-XXS-XS-S), 400mm (M-L), 420mm (XL) |
| H-B STEM | MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD |
| H-STEM/SIZE | 80 mm-4S/3S, 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL |
| HUB - FRONT | Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock |
| HUB - REAR | Shimano FH-TC500-HL; 12-142 WHR; 28 SPH; Centerlock |
| AXLE - FRONT | MERIDA EXPERT TR |
| AXLE - REAR | MERIDA EXPERT SL; including removable lever; 6/4mm allen key |
| RIM | MERIDA EXPERT SLII; 23 IWR; 25 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT CC; 27.2 DSP; 15 SSB; Carbon |
| SHIFTER - FRONT | Shimano 105 disc |
| SHIFTER - REAR | Shimano 105 disc |
| TYRE - FRONT | Maxxis Detonator; 700x32C; fold |
| TYRE - REAR | Maxxis Detonator; 700x32C; fold |
Geometry
| Frame Size | 4XS | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 | 490 | 510 | 530 | 560 |
| TT top tube [mm] | 507 | 507 | 515 | 524 | 538 | 553 | 568 | 583 |
| CS chain stay length [mm] | 418 | 418 | 418 | 418 | 418 | 418 | 418 | 418 |
| HTA head tube angle [] | 70 | 70 | 70.5 | 71 | 72 | 73 | 73 | 73.5 |
| STA seat tube angle [] | 74.5 | 74.5 | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 70 | 70 | 66 | 66 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 125 | 130 | 140 | 152 | 161 | 177 | 197 | 222 |
| FL fork length [mm] | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| R reach [mm] | 360 | 360 | 360 | 366 | 376 | 380 | 389 | 397 |
| S stack [mm] | 528 | 532 | 539 | 552 | 565 | 584 | 603 | 629 |
| WB wheel base [mm] | 990 | 991 | 992 | 997 | 1001 | 1001 | 1017 | 1026 |
| SH stand over height [mm] | 656 | 680 | 708 | 734 | 752 | 770 | 790 | 818 |
