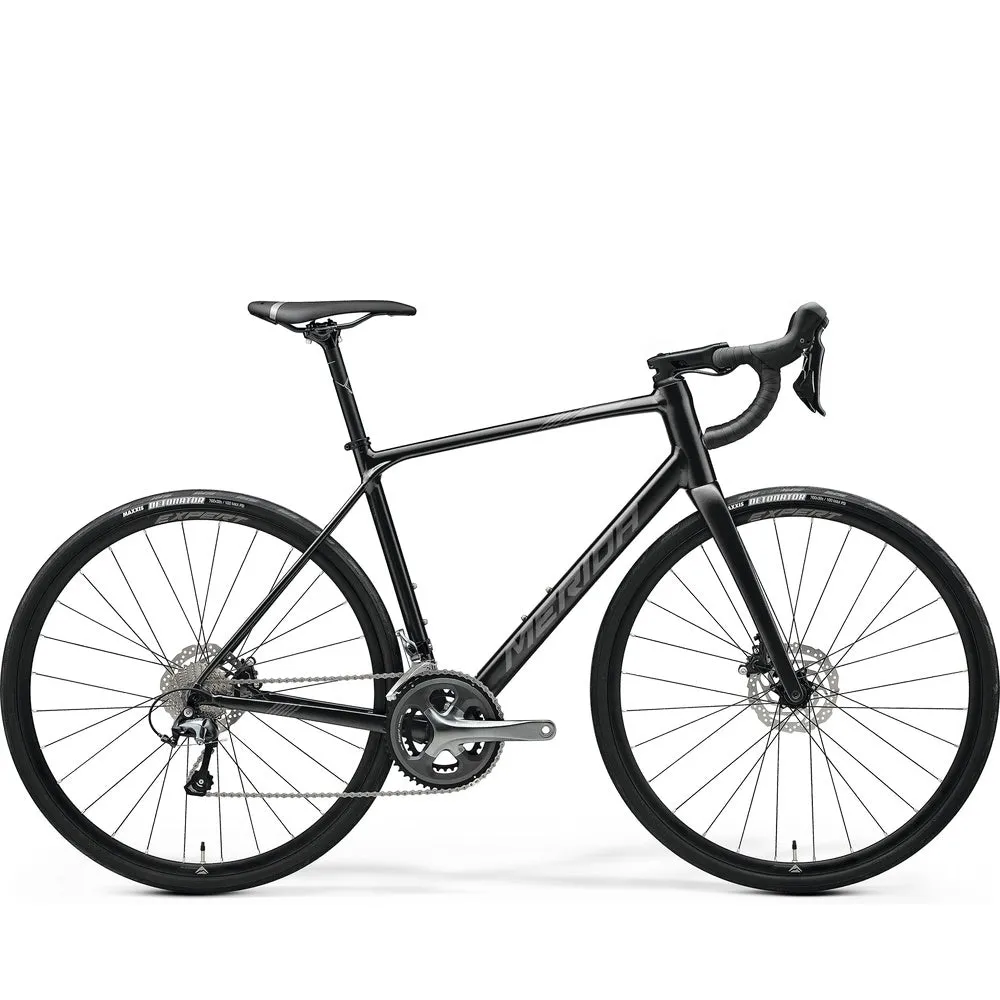

Merida Scultura Endurance 300 Road Bike
The Merida Scultura Endurance 300 is the perfect road bike for those seeking comfort and performance on long rides. Featuring a lightweight aluminium frame and endurance-focused geometry, this bike delivers a smooth ride while effortlessly tackling diverse terrains. Its quality components enhance shifting precision and braking control, making it ideal for both casual cyclists and dedicated road enthusiasts. Experience the joy of cycling with the Merida Scultura Endurance 300, your reliable companion on every road adventure!
Features
- Lightweight 6066 triple butted and hydroformed aluminium frame with comfort orientated geometry for confidence inspiring handling
- Shimano Tiagra 10-speed groupset
- MERIDA EXPERT SL wheelset
- Full carbon tapered fork
- WIRE PORT cable integration
- Under-saddle pouch with MERIDA multitool
Specification
| FRAME | SCULTURA ENDURANCE LITE I; MATaluminium; 700x35C max./ 700x32C (with fender) max. WHS; 100x12/ 142x12 AST; BB86 BBR |
| FORK | SCULTURA ENDURANCE CF3 DISC; MAT carbon; 700x35C max. WHS |
| BRAKE LEVER | Shimano Tiagra |
| BRAKE - FRONT | Shimano Tiagra; Hydraulic disc |
| BRAKE - REAR | Shimano Tiagra; Hydraulic disc |
| ROTOR - FRONT | Shimano RT10; 160mm |
| ROTOR - REAR | Shimano RT10; 160mm |
| C-HOUSING | LEX40-L3 |
| CHAIN | KMC X10 |
| CHAINWHEEL | Shimano Tiagra; 50-34 ATC |
| CRANK/SIZE | 165 mm-4S/3S/XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| BB SET | SM-BB71-41B, Pressfit 86.5 |
| DERAILLEUR - FRONT | Shimano Tiagra |
| DERAILLEUR - REAR | Shimano Tiagra; GS |
| FREEWHEEL | Shimano CS-HG500; 12-28 ATC; 10 GER |
| PEDAL | |
| GRIP | MERIDA ROAD Expert |
| HANDLEBAR | MERIDA EXPERT SLII; MAT aluminium;380mm (XXS-XS-S), 400mm (M-L), 420mm (XL) |
| H-B STEM | MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD |
| H-STEM/SIZE | 80 mm-4S/3S, 90 mm-XXS/XS/S, 100 mm-M, 110 mm-L/XL |
| HUB - FRONT | JY D981SB; 100x12 WHF; 28 SPH; Centerlock |
| HUB - REAR | JY D872SB; 12-142 WHR; 28 SPH; Centerlock |
| AXLE - FRONT | MERIDA COMP SL |
| AXLE - REAR | MERIDA COMP SL; including removable lever; 6/4mm allen key |
| RIM | MERIDA EXPERT SLII; 23 IWR; 25 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA COMP CC; MAT aluminium; 27.2 DSP; 5 SSB |
| SHIFTER - FRONT | Shimano Tiagra disc |
| SHIFTER - REAR | Shimano Tiagra disc |
| TYRE - FRONT | Maxxis Detonator; 700x32C; fold |
| TYRE - REAR | Maxxis Detonator; 700x32C; fold |
Geometry
| Frame Size | 4XS | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 | 490 | 510 | 530 | 560 |
| TT top tube [mm] | 507 | 507 | 515 | 524 | 538 | 553 | 568 | 583 |
| CS chain stay length [mm] | 418 | 418 | 418 | 418 | 418 | 418 | 418 | 418 |
| HTA head tube angle [] | 70 | 70 | 70.5 | 71 | 72 | 73 | 73 | 73.5 |
| STA seat tube angle [] | 74.5 | 74.5 | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 70 | 70 | 66 | 66 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 125 | 130 | 140 | 152 | 161 | 177 | 197 | 222 |
| FL fork length [mm] | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| R reach [mm] | 360 | 360 | 360 | 366 | 376 | 380 | 389 | 397 |
| S stack [mm] | 528 | 532 | 539 | 552 | 565 | 584 | 603 | 629 |
| WB wheel base [mm] | 990 | 991 | 992 | 997 | 1001 | 1001 | 1017 | 1026 |
| SH stand over height [mm] | 656 | 680 | 708 | 734 | 752 | 770 | 790 | 818 |
