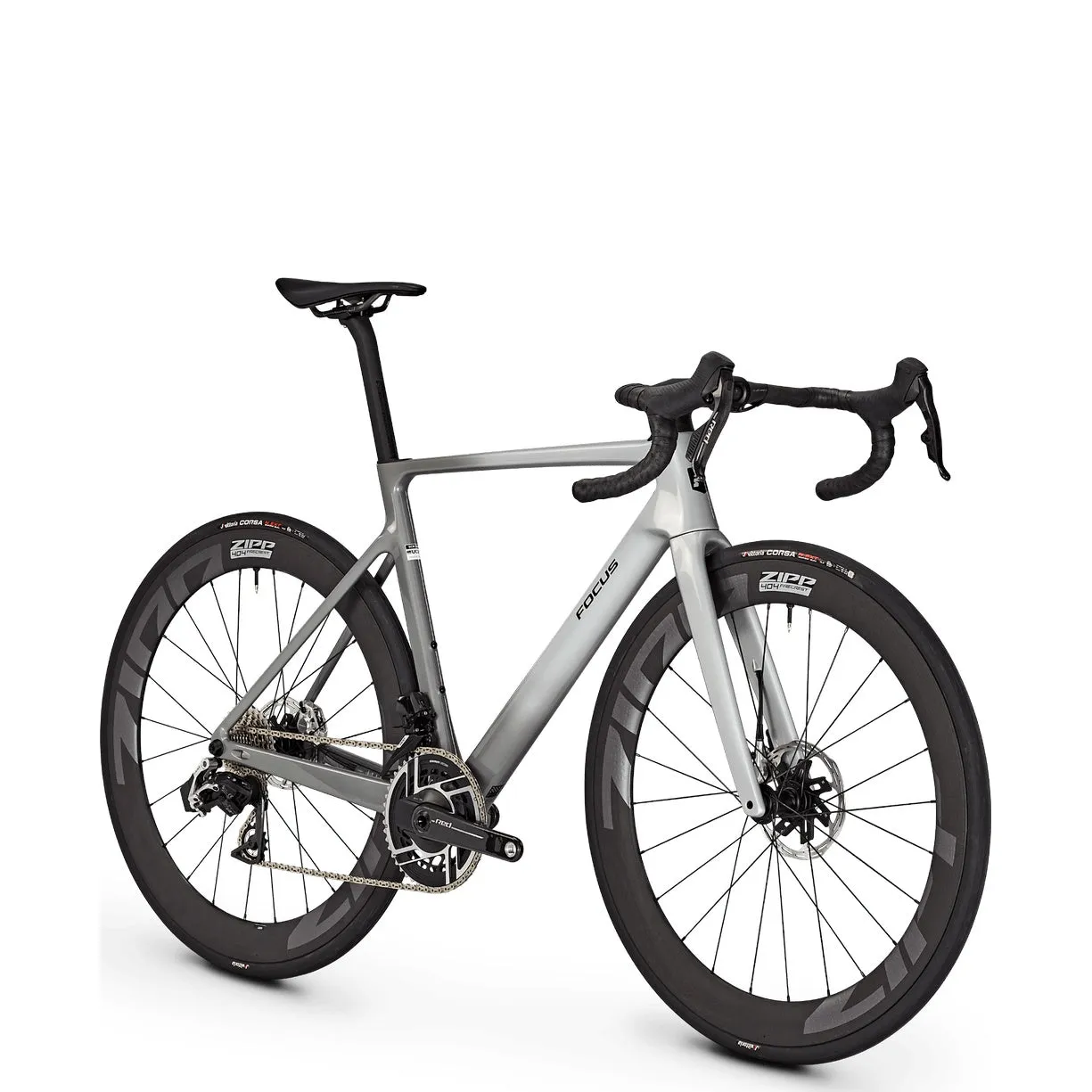

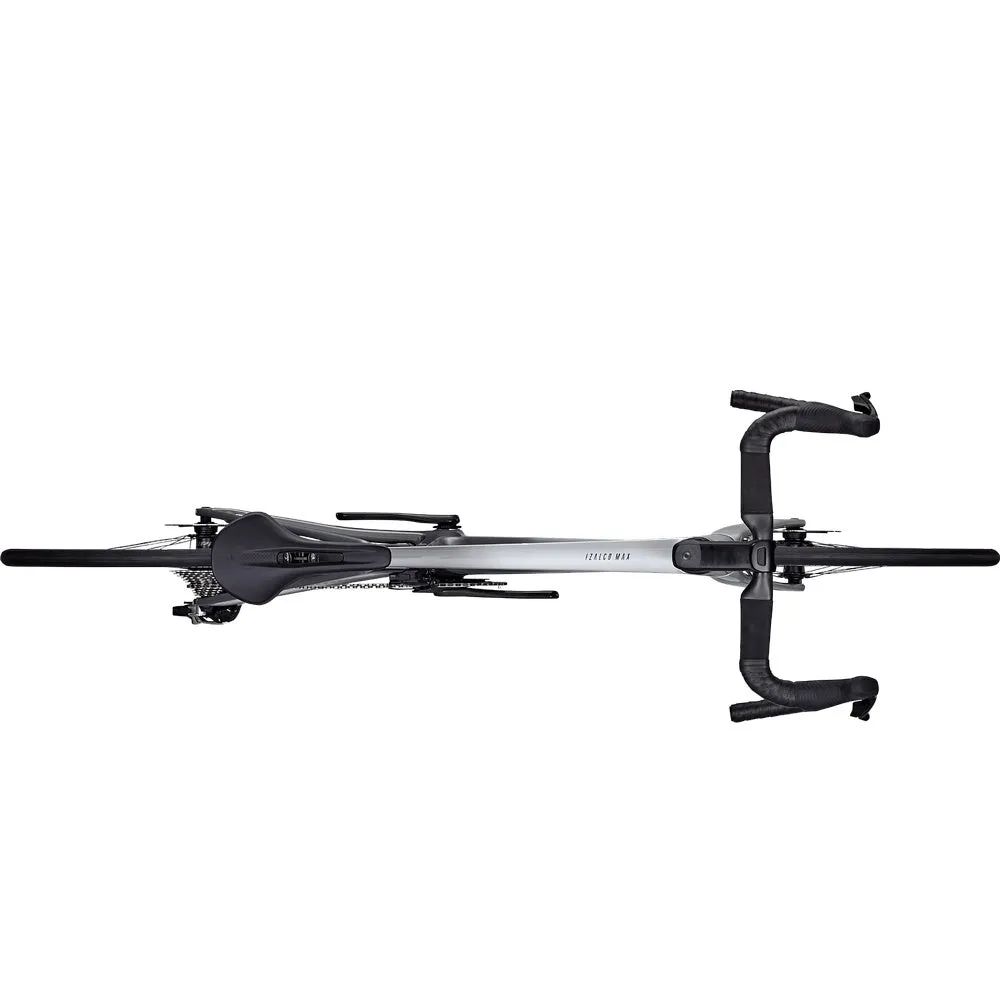

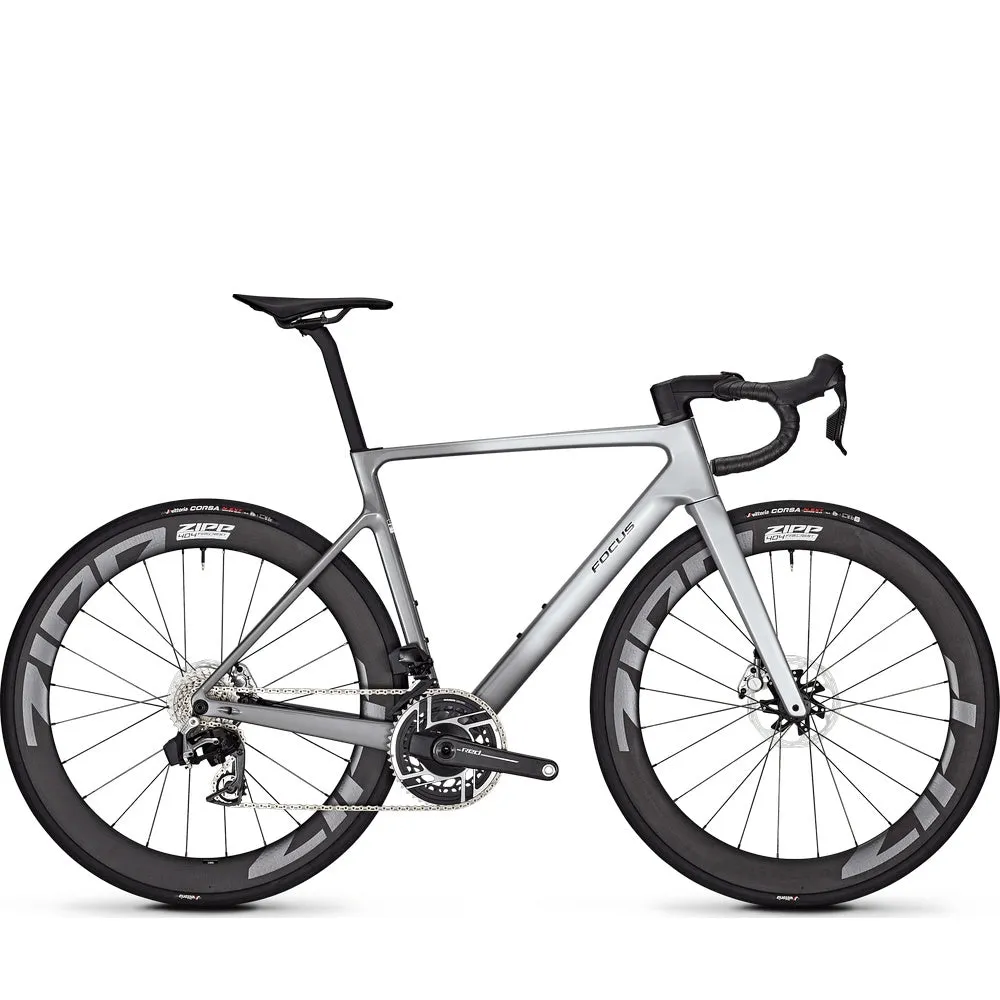

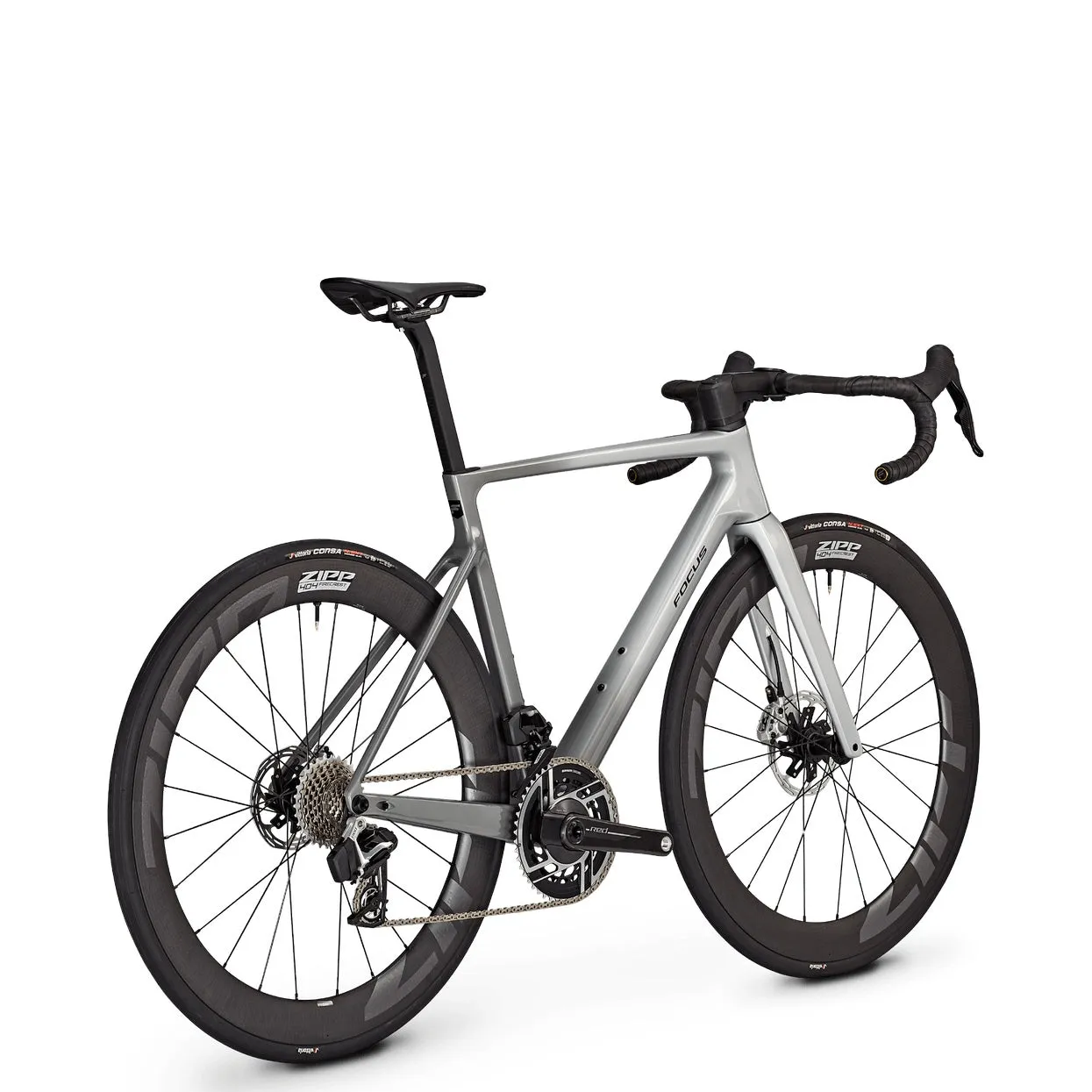

Focus Izalco Max 9.0 Road Bike - Limited Edition
The Focus Izalco Max 9.0 Road Bike features a MAX aero carbon frame weighing just 865g, paired with electronic SRAM RED AXS 2x12 shifting and ZIPP 404 Firecrest carbon wheels. This road bike's design offers a perfect color match between frame and components, with a silver and dark silver scheme reflecting its speed.
Features
- MAX aero carbon frame (865 g)
- Electronic SRAM RED AXS 2x12 shifting
- ZIPP 404 Firecrest carbon wheels
Wind tunnel-approved NACA shapes ensure aerodynamic efficiency, while the C.I.S. 2.0 stem hides cables and integrates a bike computer mount. Available in five sizes with stem lengths from 70 to 120mm, the Izalco Max 9.0 offers a perfect fit for all riders. The optimized bottom bracket and fork provide maximum stiffness, complemented by a bold geometry for easier high-speed cornering.
It makes you faster
Special Features of our Limited Edition
The design of our IZALCO MAX 9.0 road bike offers a perfect colour match of frame and bike components. The colour gradient of the SRAM RED AXS groupset merges perfectly with our frame, while the combination of Silver and Dark Silver reflects the speed of our fastest road bike. The all-new hood and lever architecture give riders greater comfort on the hoods, more power when braking, and less hand fatigue. ZIPP 404 Firecrest carbon wheels complete our IZALCO MAX 9.0 road bike.
Aero Gains
The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our road bike frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork. Our C.I.S. 2.0 stem hides the cables below the stem. This road bike also comes with an integrated bike computer mount for both Wahoo and Garmin.
Effortless Handling, Maximum Stiffness and Perfect Fit
The IZALCO MAX 9.0 road bike is available in five sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you. To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX 9.0 is the road bike for all ambitions.
Specifications
| Frame | MAX technology carbon, disc, 142x12 mm thru axle, flat mount 160/140 mm |
| Fork | MAX technology carbon, 100x12 mm thrue axle, flat mount |
| Shifter | SRAM RED HRD |
| Front Derailleur | SRAM RED AXS |
| Rear Derailleur | SRAM RED AXS, 12-speed |
| Cassette | SRAM RED XG-1290, 10-30T |
| Chain | SRAM RED |
| Crankset | SRAM RED with Quarq Power Meter, 48/35 T |
| Chainring | SRAM Red, 48/35 T |
| Bottom Bracket | SRAM DUB86, PF41 |
| Handlebar | Easton EC70 Aero, carbon, 80 mm, 125 mm |
| Grips | FOCUS Bartape SL |
| Stem | FOCUS C.I.S. 2.0 integrated, 8 |
| Headset | ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S. |
| Saddle | fi'zi:k Vento Antares R1 |
| Seatpost | FOCUS Aero Carbon, D-shape, set-back: 15 mm |
| Brakes | SRAM RED E1 |
| Brake Disc Size | 160 mm |
| Disc Brake Rotors | SRAM Red Paceline X, 160 mm |
| Wheelset | ZIPP 404 Firecrest, Carbon, 58mm, 23mm Internal |
| Tyres | Vittoria Corsa G2.0, tubeless ready, 28-622 |
| Weight | 7.1 kg (Weight of size M) |
| Permissible System Weight | 110 kg |
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| Size in mm | 500 | 520 | 540 | 560 | 580 | |
| Handlebar width | 400 | 400 | 400 | 400 | 420 | |
| Stem length | 90 | 100 | 110 | 110 | 120 | |
| Crank length | 165 | 170 | 172.5 | 172.5 | 175 | |
| Seatpost length | 350 | 350 | 350 | 350 | 350 | |
| A | Seat tube length | 475 | 495 | 515 | 535 | 555 |
| B | Top tube length | 517 | 530 | 543 | 568 | 582 |
| C | Head angle () | 71 | 72 | 72.5 | 72.5 | 73 |
| D | Seat angle () | 74.5 | 74 | 73.5 | 73.5 | 73 |
| E | Chainstay length | 410 | 410 | 410 | 410 | 410 |
| F | Bottom bracket drop | 72 | 72 | 72 | 72 | 72 |
| G | Head tube length | 100 | 115 | 135 | 155 | 175 |
| H | Fork length | 371.5 | 371.5 | 371.5 | 371.5 | 371.5 |
| I | Fork offset | 46 | 46 | 46 | 46 | 46 |
| J | Wheelbase | 976 | 975 | 979 | 1004 | 1008 |
| K | Stack | 513 | 531 | 552 | 571 | 592 |
| L | Reach | 375 | 378 | 380 | 399 | 401 |
| M | Standover height | 762 | 778 | 795 | 814 | 835 |
