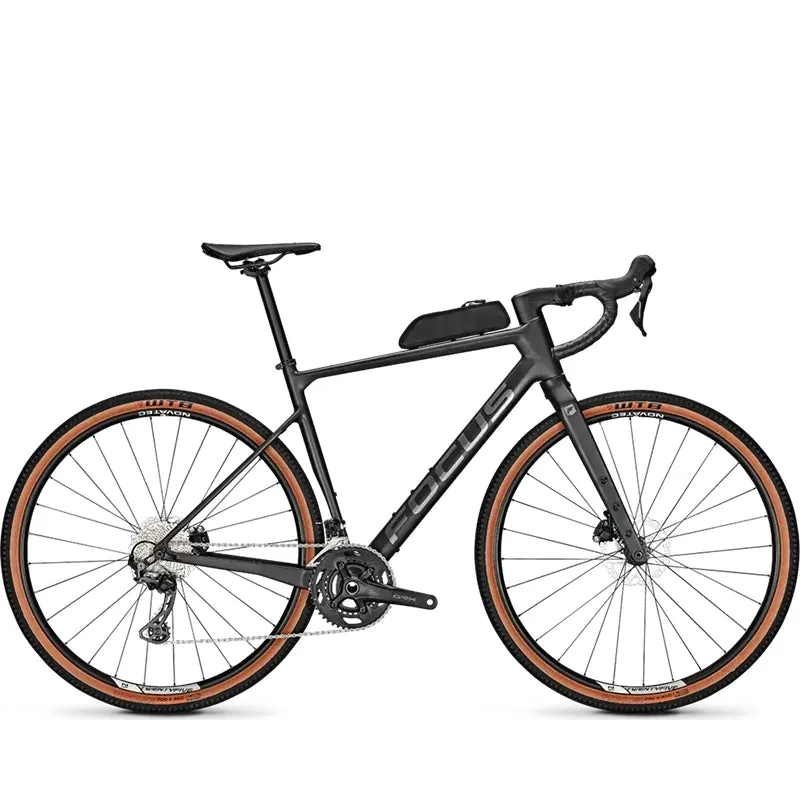

Discover new paths with the Focus Atlas 8.7 Gravel Bike! Engineered with a carbon frame, this high-performance gravel bike boosts your rides across rugged terrains and long-distance journeys, making every cycling adventure unforgettable.
Quick Specs - Atlas 8.7
- Terrain: Gravel
- Frame: Carbon
- Brakes: Hydraulic, Shimano GRX
- Groupset: Shimano GRX, 2x11-speed
- Weight: 9.60KG (M)
Key Features:
- Carbon Frame:Lightweight yet sturdy, the frame provides an ideal mix of stiffness and compliance for smooth rides on varied surfaces.
- Shimano GRX Groupset:Precise and reliable, this setup ensures optimal control, allowing for smooth climbing and confident descents.
- Wide 700c Tyres:Enjoy enhanced traction and stability, perfect for gravel and rough roads.
- Hydraulic Disc Brakes:Exceptional stopping power in all conditions, enhancing safety on steep or slippery terrains.
- Versatile Geometry:A perfect balance between aggression and comfort, suitable for both high-speed sprints and all-day rides.
Why Choose the Focus Atlas 8.7?
- Unmatched Versatility:From gravel roads to city streets, adapt effortlessly to any exploration with up to 120Kg load capacity, including 3Kg on each fork.
- Durability and Handling:Trust the robust carbon frame and responsive handling for navigating tough descents and corners with ease.
- Precision and Comfort:The Shimano GRX groupset offers smooth shifting for any terrain, while the bike's geometry and wide tires keep rides comfortable, whether short or extended.
Embrace extraordinary biking experiences with the Focus Atlas 8.7, your ultimate companion for embarking on epic adventures or enjoying scenic rides. Purchase now and transform your cycling into an adventure beyond the ordinary.
Specifications
| Description | |
| Frame | Carbon, disc, C.I.S. integration, press fit BB86, 148x12 mm thru-axle, flat mount 160/160 mm, internal cable routing, Toptube Bag (Colour: Black) |
| Fork | Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points |
| Shifter | Shimano GRX ST-RX600, 11-speed |
| Front Derailleur | Shimano GRX FD-RX810 |
| Rear Derailleur | Shimano GRX RD-RX810, 11-speed |
| Cassette | Shimano 105 R7000, 11-speed - 11-34T |
| Chain | Shimano CN-HG601, 11-speed |
| Transmission | Front: 46/30 Rear: 11-34 |
| Bottom Bracket | Shimano Pressfit Road BB86 |
| Handlebar | FOCUS JD RA85, 31.8mm, drop: 116mm, reach: 74mm, flare: 10 |
| Stem | FOCUS C.I.S. 2.0 integrated, 31.8mm, aluminium |
| Headset | ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S |
| Saddle | fi'zi:k Taiga |
| Seatpost | Aluminium, 27.2 mm, 0 mm set-back |
| Brake Caliper | Shimano GRX ST-RX400 BR-RX400 |
| Brake Lever | Shimano GRX BL-RX600, 11-speed |
| Brake | Disc |
| Wheelset | Novatec 25 Elite, 25-622, disc, center lock, front: 110x12 mm, rear: 148x12 mm |
| Tyres | WTB Riddler, 700 x 45C, folding |
| Weight | 9.91Kg |
(Specifications are subject to change)
Geometry
| XS | S | M | L | XL | ||
| Size (mm) | 50 | 52 | 54 | 57 | 60 | |
| Size | 445 | 485 | 515 | 545 | 585 | |
| Handlebar Width (mm) | 420 | 420 | 440 | 440 | 440 | |
| Stem Length | 80 | 90 | 90 | 90 | 100 | |
| Crankarm Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | |
| Seatpost Length | 350 | 350 | 350 | 350 | 350 | |
| A | Seat Tube Length | 445 | 485 | 515 | 545 | 585 |
| B | Effective Top Tube | 532 | 549 | 567 | 591 | 606 |
| C | Head Tube Angle (mm) | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| D | Effective Seat Tube Angle (mm) | 74 | 73.5 | 73.5 | 73.5 | 73.5 |
| E | Chainstay Length | 425 | 425 | 425 | 425 | 425 |
| F | Bottom Bracket Drop | 75 | 75 | 75 | 75 | 75 |
| G | Head Tube Length | 115 | 120 | 130 | 150 | 180 |
| H | Fork Construction Height | 425 | 425 | 425 | 425 | 425 |
| I | Pre-raked Fork | 50 | 50 | 50 | 50 | 50 |
| J | Wheelbase Length | 1016 | 1028 | 1046 | 1069 | 1068 |
| K | Stack | 569 | 574 | 583 | 611 | 630 |
| L | Reach | 370 | 380 | 395 | 410 | 420 |
