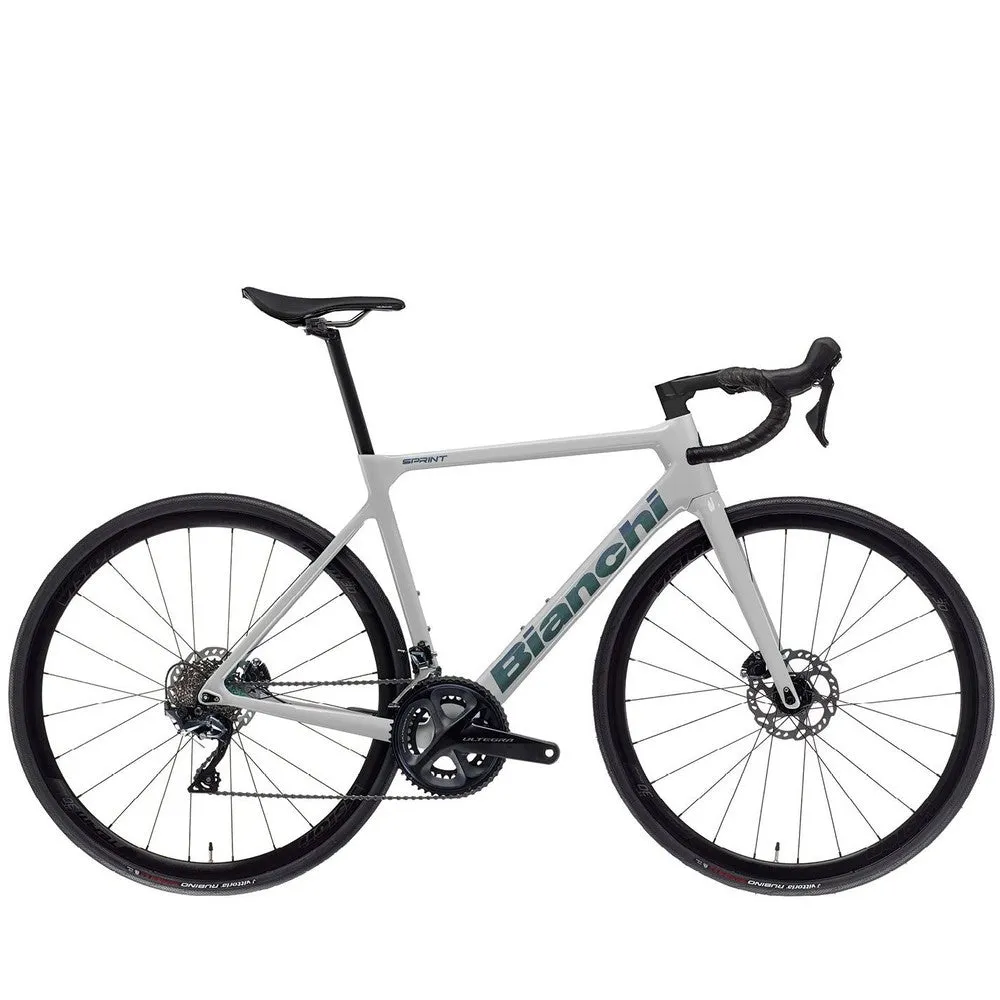

Bianchi Sprint 105 12 Speed Road Bike - Light Grey / Graphite Race Glossy
Experience the thrill of speed and precision with the Bianchi Sprint 105 12 Speed Road Bike. Crafted for the discerning cyclist, this road bike seamlessly blends tradition and cutting-edge technology. Glide through the wind on its sleek carbon monocoque frame, designed for both seasoned racers and those embarking on their cycling journey.
The Shimano 105 12-speed groupset delivers seamless gear shifts, while the hydraulic disc brakes provide confident stopping power. Whether youre chasing podiums or conquering challenging climbs, the Bianchi Sprint 105 is your trusted companion on the road. Get ready to pedal toward victory!
Designed for
Expert riders and for those starting their racing career
Specification
| Frameset | |
| Frame | Sprint carbon monocoque, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.5", integrated seat clamp, full carbon dropout, Disc brake flat mount, thru axle 12 x 142 sizes 47-50-53-55-57-59-61cm |
| Fork | Full Carbon Aero Road 1.4">1.5" integrated head , Disc brake flat mount, thru axle 12x100 |
| Headset | ACROS & FSA, for internal cable routing |
| Drivetrain | |
| Shifters | Shimano 105 hydraulic disc brake for road for 160mm rotor |
| Rear Derailleur | Shimano 105 12sp, direct attachment, max 36T |
| Front Derailleur | Shimano 105 12sp, top gear 50-54T, 16T capacity, for rear 12-speed |
| Crankset | Shimano 105 12sp,12- speed, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm |
| Bottom Bracket | Shimano, SM-BB72-41B, press fit for road, bearing, inner cover |
| Chain | Shimano |
| Brakes | |
| Brakes | Shimano, Hydraulic disc brake, included in the shifter |
| Rotor | Shimano rotor for disc brake center lock, SM-RT70, 160mm |
| Wheels | |
| Wheels | Velomann alloy, disc brake, 30mm rim profile, hub team TC j-bend, spoke round 2mm black color, clincher 622x19C, w/rim tape, front HH12 - rear HH12/142 |
| Tyre | Vittoria Rubino IV G2.0 graphene, 700x25, 60TPI |
| Cockpit | |
| Stem | Velomann, Alloy 6061, raise - 7 Ext: 80mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm |
| Handlebar | Velomann Compact, alloy 6061, diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-44/53cm,420mm-55/59cm,440mm-61cm |
| Grips | Bianchi cork, black |
| Saddle | |
| Seatpost | Velomann alloy 6061, 15mm offset, 27,2mm; Length: 300mm-44cm ; 350mm-47/61cm |
| Saddle | Velomann Seta |
Geometry
| SIZE (mm) | A | B | C | D | E | F | G | G1 | H | I | X | Y | WB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 420 | 515 | 41 | 60 | 105 | 580 | 74.5 | 70.5 | 43 | 373 | 377 | 497 | 982 |
| XS | 450 | 525 | 410 | 60 | 110 | 582 | 74.5 | 71.5 | 43 | 373 | 383 | 505 | 983 |
| S | 480 | 535 | 410 | 68 | 125 | 583 | 74 | 72 | 43 | 373 | 384 | 529 | 984 |
| M | 500 | 550 | 413 | 68 | 140 | 588 | 73.5 | 73 | 43 | 373 | 388 | 545 | 991 |
| L | 520 | 560 | 413 | 68 | 155 | 593 | 73.5 | 73 | 43 | 373 | 393 | 561 | 996 |
| XL | 540 | 575 | 413 | 68 | 175 | 603 | 73 | 73 | 43 | 373 | 396 | 580 | 1006 |
| XXL | 560 | 585 | 415 | 68 | 195 | 607 | 72.5 | 73 | 43 | 373 | 397 | 599 | 1012 |
