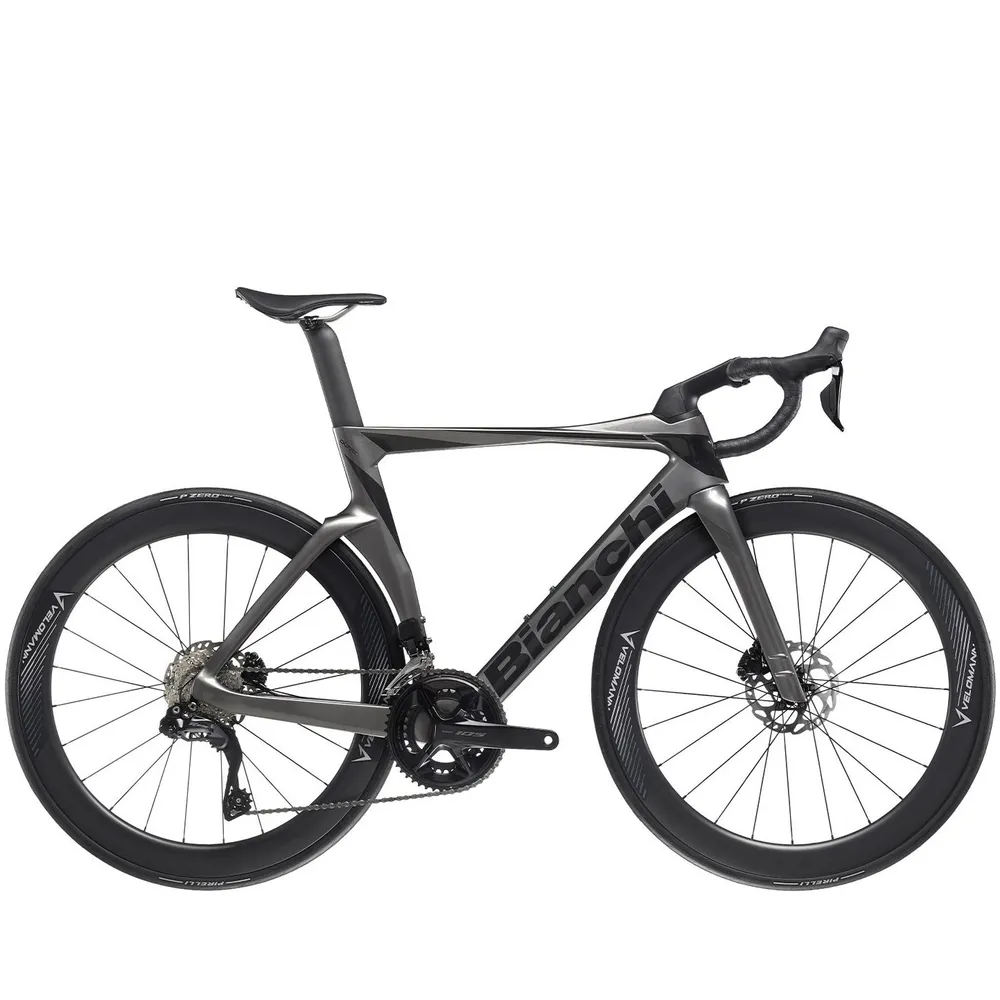

Bianchi Oltre Comp Road Bike 105 Di2 - Graphite/Dark Graphite
The Bianchi Oltre Comp Road Bike 105 Di2 is a high-performance road bike designed to provide exceptional value and performance for ambitious cyclists. With its lightweight carbon frame and Shimano's 105 Di2 electronic shifting system, this bike offers a smooth, precise, and responsive ride.
Key Features:
- Shimano 105 Di2 12-Speed Drivetrain:Delivers precise and reliable electronic shifting for effortless gear changes.
- Lightweight Carbon Frame:Offers exceptional stiffness and agility for a powerful and efficient ride.
- Aerodynamic Design:Minimizes wind resistance for improved speed and performance.
- Race-Optimized Geometry:Ensures balanced handling and precise control on various terrains.
- Integrated Components:Seamlessly integrated components create a sleek and refined aesthetic.
Specification
| Frameset | |
| Frame | Oltre Comp, carbon, disc brakes, electronic and mechanical shifting compatible, internal cable routing 1.5-1.5 headset, BB-PressFit 86,5x41, flat mount brakes, thru axle 12x142mm sizes 47-50-53-55-57-59cm |
| Fork | Full Carbon aero, disc brakes, integrated head 1,5", thru axle 12x100mm, compatible with 700x30 tire |
| Headset | Fsa TH-073E ACB 1.5" 51.8x40x8 |
| Drivetrain | |
| Shifters | Shimano 105 Di2 hydraulic disc brake for road, ST-R7170, BR-R7170, for 160mm rotor |
| Rear Derailleur | Shimano, 105 Di2 RD-R7150, 12-speed |
| Front Derailleur | Shimano 105 Di2, FD-R7150 12-speed |
| Crankset | Shimano 105 12sp, FC-R7100, Ultegra hollowtech 2, for rear 12- speed, 50x34T, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm |
| Bottom Bracket | Shimano, SM-BB72-41B, press fit for road, bearing, inner cover |
| Chain | Shimano, 105 12sp, CN-M7100 |
| Brakes | |
| Brakes | Shimano BR-R8170 Hydraulic disc brake, included in the shifter |
| Rotor | Shimano rotor for disc brake center lock, 160mm |
| Wheels | |
| Wheels | Velomann Carbon V50R 50mm profile, 700x21c, HG body, UD carbon fiber, tubeless ready and clincher, Internal width: 21 mm, weight per set: 1.630g |
| Tyre | Pirelli P7, 700 x 28c, 60TPI |
| Cockpit | |
| Stem | Velomann Aero stem, material alloy, Oversize, 1.1/8", size: 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59cm |
| Handlebar | Velomann Aero Compact handlebar, alloy diam. 31,8mm, reach 74mm, drop 116mm, for fully internal cable routing Size: 400mm-47~53cm, 420mm-55~59cm |
| Grips | Velo soft Velo soft Microfiber tape, black tape, black |
| Saddle | |
| Seatpost | Oltre Full Carbon Aero special dimension seatpost, 20mm offset, length: 280mm-47cm, 300mm-50/53cm, 350mm-55/59cm |
| Saddle | Velomann Mitora139 Hyper, open flow, carbon rails, carbon-reinforced nylon, Large 139mm Lenght 250mm |
Geometry
| SIZE | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 450 | 515 | 410 | 58 | 83 | 579 | 74.5 | 70.5 | 43 | 368 | 385 | 470 | 982 |
| XS | 480 | 525 | 410 | 58 | 88 | 581 | 74.5 | 71.5 | 43 | 368 | 392 | 478 | 983 |
| S | 510 | 536 | 410 | 68 | 103 | 582 | 74 | 72 | 43 | 368 | 393 | 504 | 984 |
| M | 530 | 550 | 410 | 68 | 118 | 588 | 73.5 | 72.5 | 43 | 368 | 397 | 520 | 988 |
| L | 550 | 560 | 412 | 68 | 133 | 593 | 73.5 | 73 | 43 | 368 | 402 | 536 | 996 |
| XL | 570 | 575 | 412 | 68 | 153 | 603 | 73 | 73 | 43 | 368 | 406 | 555 | 1005 |
