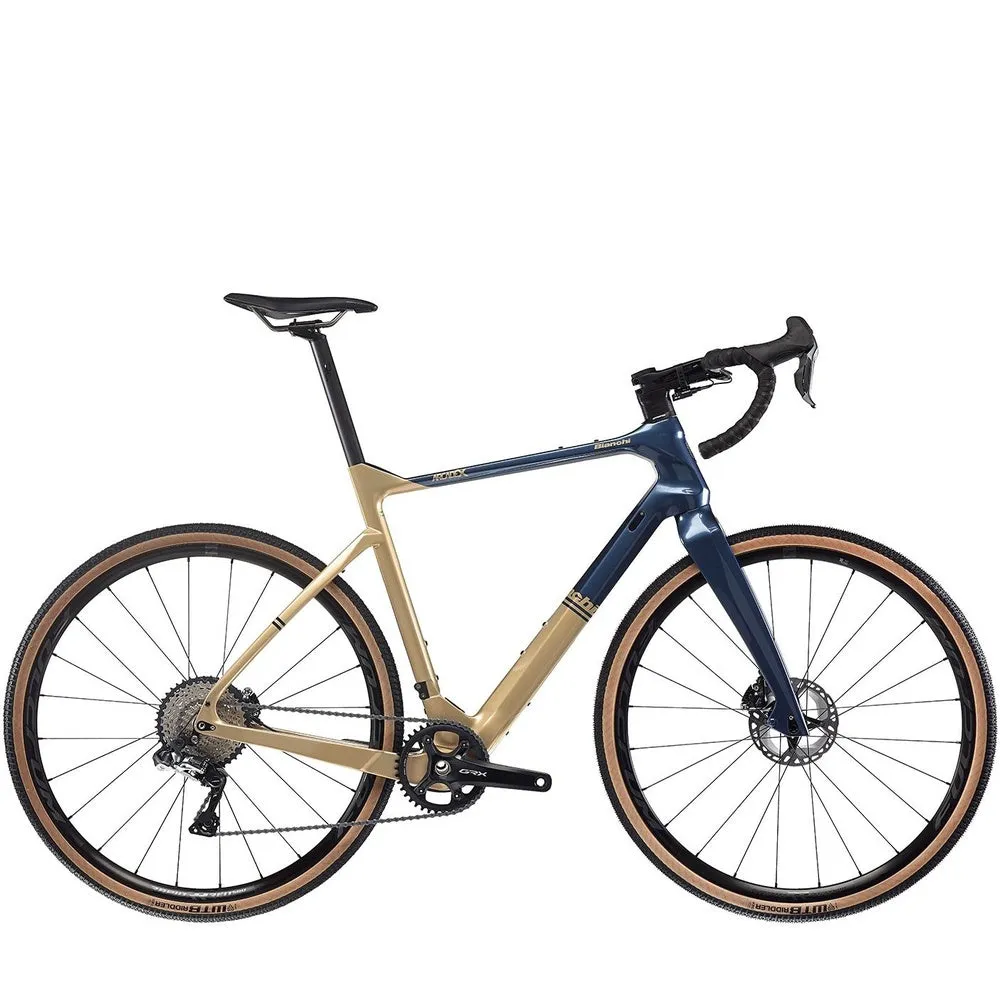

Bianchi Arcadex Gravel Bike GRX 815 Di2 - Gold Storm/Blue Note
The Bianchi Arcadex Gravel Bike GRX 815 Di2 is the ultimate machine for gravel enthusiasts. Featuring a lightweight Carbon frame and cutting-edge Shimano GRX 815 Di2 electronic shifting, this bike offers precision performance and comfort, ready to tackle any adventure.
Key Features:
- Shimano GRX 815 Di2 Electronic Shifting:Provides fast and accurate gear changes for optimal performance on varied terrains.
- Lightweight Arcadex Carbon Frame:Designed for durability and lightweight agility, perfect for long gravel rides.
- Enhanced Tyre Clearance:Allows for wider tires, improving traction and stability on rough surfaces.
- Endurance Geometry:Comfort-focused design to reduce fatigue during extended rides.
- Versatile Mounting Options:Equipped for racks and fenders, ideal for bikepacking and touring adventures.
Specification
| Frameset | |
| Frame | Arcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition, sizes: XS-SM-MD-LG-XL |
| Fork | Bianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm |
| Headset | FSA SMR HS with 1.1/8 custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36/45 ACB |
| Drivetrain | |
| Shifters | Shimano GRX 815 Di2 11sp Hydraulic disc brake |
| Rear Derailleur | Shimano GRX RX 817 Di2, RD-RX817, 11sp, top normal shadow plus design, direct attachment |
| Front Derailleur | - |
| Crankset | Shimano GRX 815 FC-RX810-1 40T, Hollowtech II, Crank Length: 170mm-XS-SM, 172.5mm-MD-LG, 175mm-XL |
| Bottom Bracket | Shimano SM-BB72-41B |
| Chain | Shimano Ultegra CN-HG701-11 |
| Cassette | Shimano XT CS-M8000 11sp, 11-13-15-17-19-21-24-28-32-37-42T |
| Brakes | |
| Brakes | Shimano BR-RX810 |
| Rotor | Shimano SM-RT800 Center Lock, diam. 160mm |
| Wheels | |
| Wheels | Fulcrum Rapid Red 500 DB 2WF-R C23 AFS |
| Tyre | WTB Riddler Race 700x37 |
| Cockpit | |
| Stem | Reparto Corse by Fsa ST-OS-188/SMR-0, Alloy 6061 , 1 1/4", rise 0, Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aero shape, Aluminum 6061, reach 70mm, flare angle 16, drop cc 130mm, size: 40cm-XS/S, 42cm-M/L, 44cm-XL |
| Grips | La Spirale Ribbon cork |
| Saddle | |
| Seatpost | Reparto Corse carbon shaft UD finish, forged alloy head, 15mm offset L350mm, 31,6mm, Length: 300mm-XS, 350mm-S/M/L/XL, FSA Sleeve Di2 31.6mm |
| Saddle | Fi'zi:k Argo Tempo R5, nylon carbon reinforced shell w/WingFlex, rail S alloy, 260x150mm |
Geometry
| Size | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 440 | 522 | 425 | 75 | 120 | 596 | 74.5 | 70.5 | 50 | 416 | 365 | 565 | 1010 |
| SM | 480 | 535 | 425 | 75 | 135 | 605 | 74 | 70.5 | 50 | 416 | 369 | 579 | 1018 |
| MD | 520 | 550 | 425 | 75 | 150 | 610 | 73.5 | 71 | 50 | 416 | 374 | 595 | 1024 |
| LG | 550 | 565 | 425 | 75 | 165 | 626 | 73.5 | 71 | 50 | 416 | 384 | 609 | 1039 |
| XL | 580 | 585 | 425 | 75 | 180 | 640 | 73 | 71 | 50 | 416 | 394 | 623 | 1054 |
