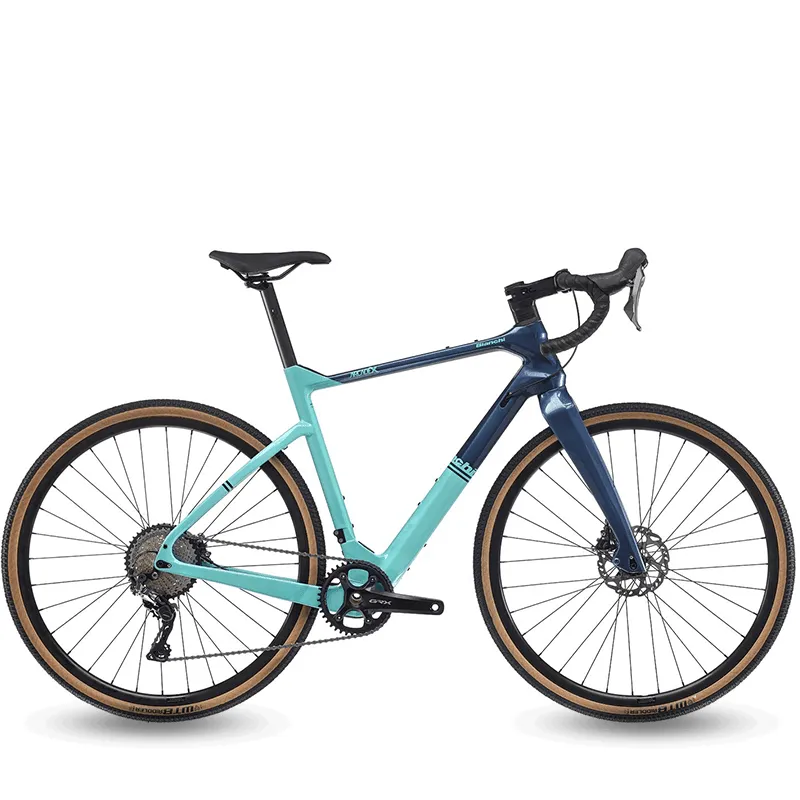

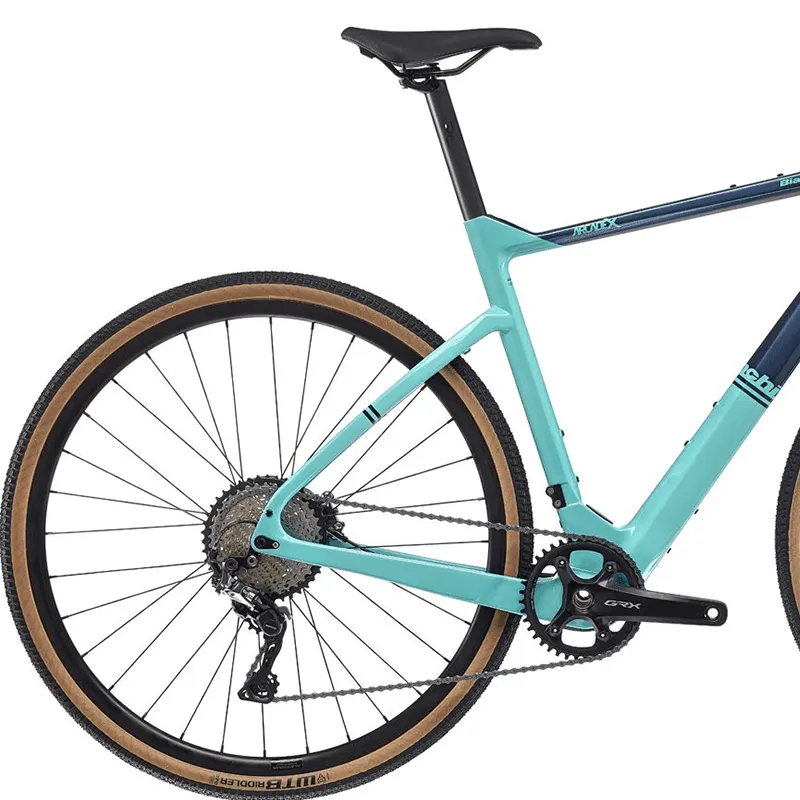

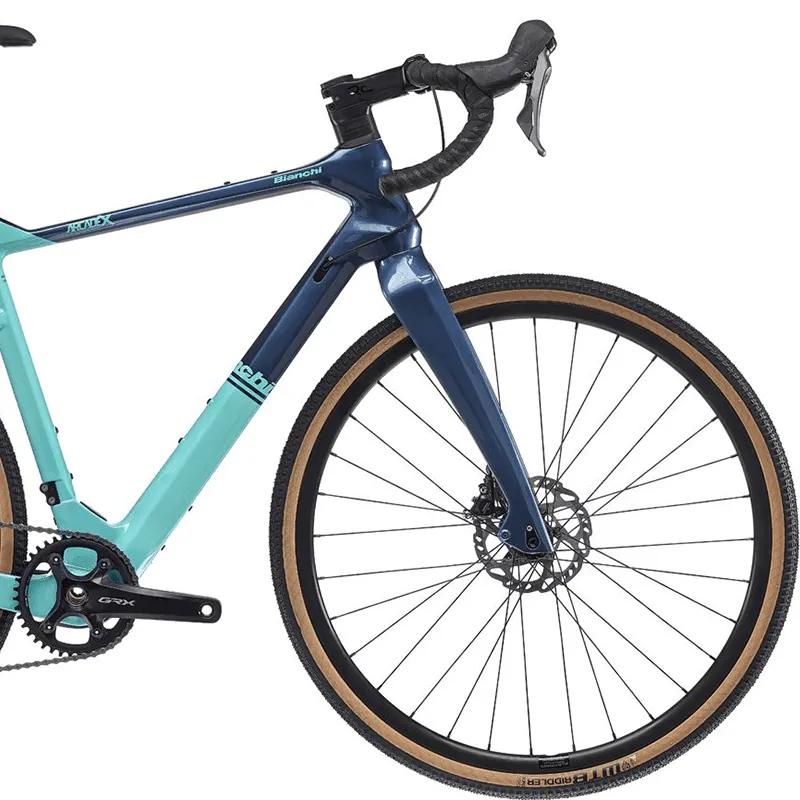

Bianchi Arcadex Gravel Bike GRX 810 - Celeste/Blue Note Glossy
The Bianchi Arcadex Gravel Bike GRX 810 is engineered for performance and versatility on all terrains. With its lightweight aluminum frame and high-quality Shimano GRX 810 1x11-speed drivetrain, this bike offers exceptional handling and reliability for your gravel adventures.
Key Features:
- Shimano GRX 810 1x11-Speed Drivetrain:Ensures smooth, reliable shifting with a single chainring for hassle-free gear management.
- Lightweight Aluminum Frame:Offers a balance of durability and agility, designed for optimal performance on diverse surfaces.
- Enhanced Tire Clearance:Compatible with wider tires, providing improved traction and comfort across gravel paths.
- Endurance-Focused Geometry:Delivers comfort and stability during long rides on mixed terrains.
- Multiple Mounting Options:Equipped with mounts for racks and fenders, ideal for bikepacking and extended journeys.
Specification
| Frameset | |
| Frame | Arcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition, sizes: XS-SM-MD-LG-XL |
| Fork | Bianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm |
| Headset | Bianchi 1.5" head |
| Drivetrain | |
| Shifters | Shimano GRX 810 ST-RX810 1x11sp |
| Rear Derailleur | Shimano RD-RX812, GRX 11sp, top normal shadow plus design, direct attachment, direct mount compatible |
| Front Derailleur | - |
| Crankset | Shimano GRX 810 FC-RX810-1 40T, Hollowtech II, Crank Length: 170mm-XS/SM, 172.5mm-MD/LG, 175mm-XL |
| Bottom Bracket | Shimano SM-BB72-41B |
| Chain | Kmc X11-1 EPT finish |
| Cassette | Shimano SLX CS-M7000, 11sp 11-13-15-17-19-21-24-28-32-37-42T |
| Brakes | Shimano fat mount caliper, thru axle 12x100mm |
| Brakes | Shimano BR-RX810 |
| Rotor | Shimano SM-RT70, diam. 160mm |
| Wheels | |
| Wheels | AlexRims GD24 disc 622-21, tubeless ready. Shimano FH-RS470 Hubs |
| Tyre | WTB Riddler Comp 700x37 |
| Cockpit | |
| Stem | Reparto Corse by Fsa ST-OS-188/SMR-0, Alloy 6061 , 1 1/4", rise 0, Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL |
| Handlebar | Reparto Corse Aluminum 6061, reach 70mm, flare angle 16, drop cc 120 x size 40cm and 130mm, size: 40cm-XS/S, 42cm-M/L, 44cm-XL |
| Grips | La Spirale Ribbon cork |
| Saddle | |
| Seatpost | Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm-XS, 350mm-S/M/L/XL |
| Saddle | Reparto Corse 2315HRN, rail steel black, open, cover PU, lenght/wide 250x148mm |
Geometry
| Size | A | B1 | C | D | E | F | G | G1 | H | I | X | Y | WB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 440 | 522 | 425 | 75 | 120 | 596 | 74.5 | 70.5 | 50 | 416 | 365 | 565 | 1010 |
| SM | 480 | 535 | 425 | 75 | 135 | 605 | 74 | 70.5 | 50 | 416 | 369 | 579 | 1018 |
| MD | 520 | 550 | 425 | 75 | 150 | 610 | 73.5 | 71 | 50 | 416 | 374 | 595 | 1024 |
| LG | 550 | 565 | 425 | 75 | 165 | 626 | 73.5 | 71 | 50 | 416 | 384 | 609 | 1039 |
| XL | 580 | 585 | 425 | 75 | 180 | 640 | 73 | 71 | 50 | 416 | 394 | 623 | 1054 |
