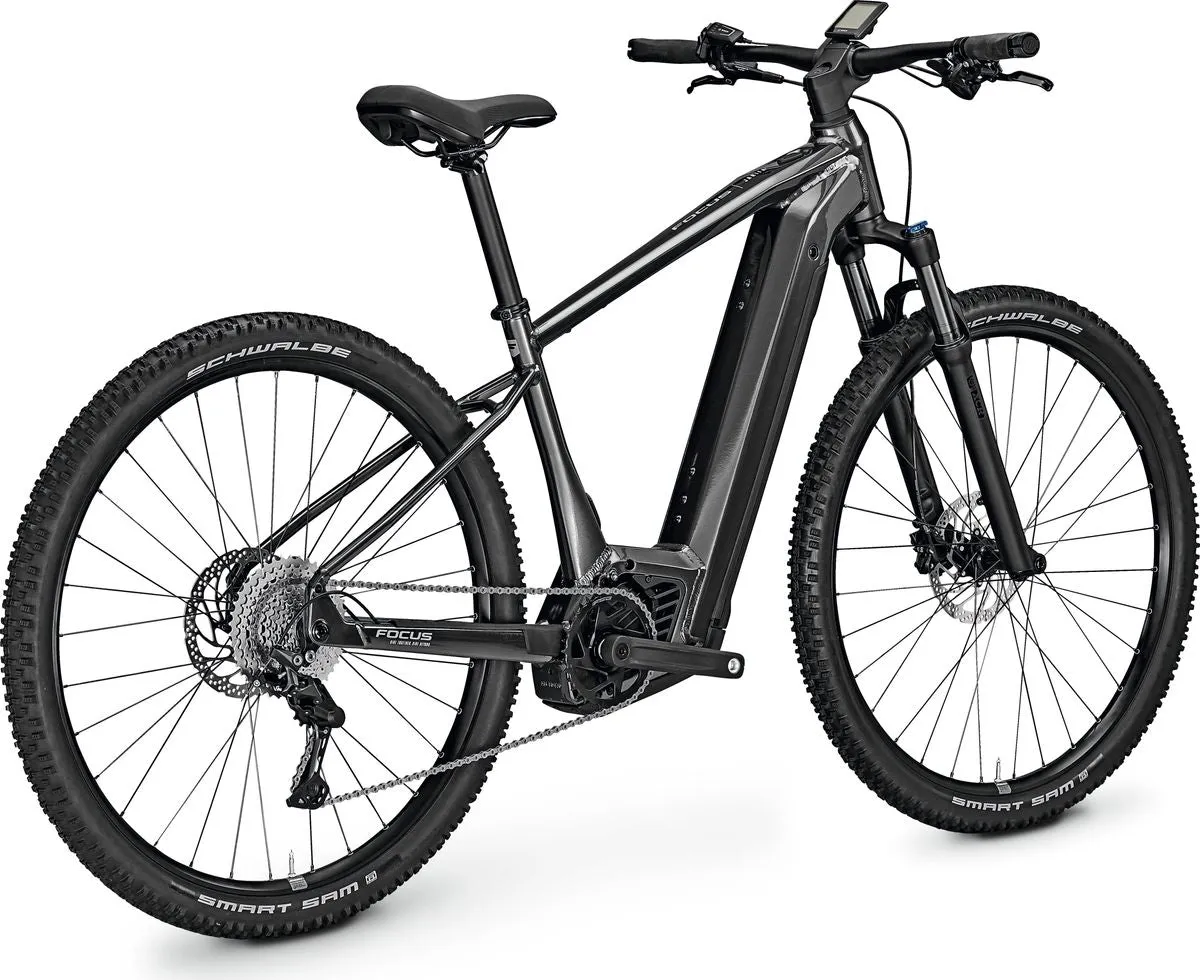

- CUSTOMISABLE BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE, INTUVIA DISPLAY AND 625 WH BATTERY
- OFFROAD-READY MOUNTAIN BIKE GEOMETRY WITH 29" WHEELS (SIZE XS: 27,5") AND SHIMANO DEORE 10-SPEED SHIFTING
- COMFORTABLE COCKPIT AND C.I.S. STEM WITH INTEGRATED CABLE ROUTING
ESCAPE THE DAILY GRIND
SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. A well-balanced geometry makes the JARIFA ride agile and dynamic. The strongest e-motor of Bosch is perfectly integrated into the bottom bracket area.
FULLY INTEGRATED AND COMFORTABLE
The Bosch Powertube battery with 625 Wh is perfectly integrated into the down tube, yet it can also be removed at any time for charging. The cockpit with a 30-degree stem and ergonomic parts make your ride comfortable even on rides off the beaten track. The C.I.S. (Cockpit Integration Solution) technology offers a clean cockpit with cable routing through stem and headset into the frame.
CONSIDERING ALL NEEDS
The JARIFA combines MTB and trekking DNA. The JARIFA 6.7 is approved for most trailers and for a system weight (rider plus gear and bike) of 150 kg. Considering the needs of smaller riders, the JARIFA models in size XS roll on 27,5" wheels. The JARIFA can be easily retrofitted with rack, mudguards, stand or light system thanks to respective mounting points.
| FRAME MATERIAL | Aluminium |
| FRAME | 7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, post mount 180 mm |
| FORK | SR Suntour XCR 34 LO Coil, 15x110 mm |
| TRAVEL OF SUSPENSION FORK | 100 mm |
| MOTOR | Bosch Performance CX Gen4, 85 Nm, 250 W |
| BATTERY WATT-HOURS | 625 Wh |
| BATTERY AMPERE HOURS | 17.4 Ah |
| DISPLAY | Bosch LED Remote Kiox 300 |
| SHIFTER | Shimano Deore M4100, 10-speed |
| REAR DERAILLEUR | Shimano Deore M4120, 10-speed |
| SPROCKET | Shimano Deore M4100, 10-speed |
| CHAIN | KMC X10, 10-speed |
| CRANKSET | FSA CK-320, aluminium |
| TRANSMISSION OF DRIVE | Front: 36T, Rear: 11-42T |
| BOTTOM BRACKET | Integrated in Drive Unit |
| HANDLEBAR | Aluminium, 760 mm, flatbar, backsweep: 9, 35,0 mm |
| STEM | FOCUS C.I.S. integrated, 60 mm, 30, 35 mm, aluminium |
| HEADSET | ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated |
| SADDLE | Selle Royal HRN 4007 |
| SEATPOST | Aluminium, 31.6 mm |
| BRAKE CALIPER | Shimano MT200, 2-piston, hydraulic disc brake |
| BRAKE LEVER | Shimano MT200 |
| BRAKE | Disc |
| RIMS | RODI TRYP25, 25-622 |
| REAR HUB | Shimano Alivio MT400, 12x148 mm |
| FRONT HUB | Shimano Alivio MT400, 15x110 mm |
| TIRES | Schwalbe Smart Sam 2.25, 57-622, Schwalbe Smart Sam, 57-584 (XS only) |
| GEARS | 10 |
| BIKE WEIGHT INCL. BATTERY IN KG | 23.5 |
| SIZE | XS, S, M, L, XL |
Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
